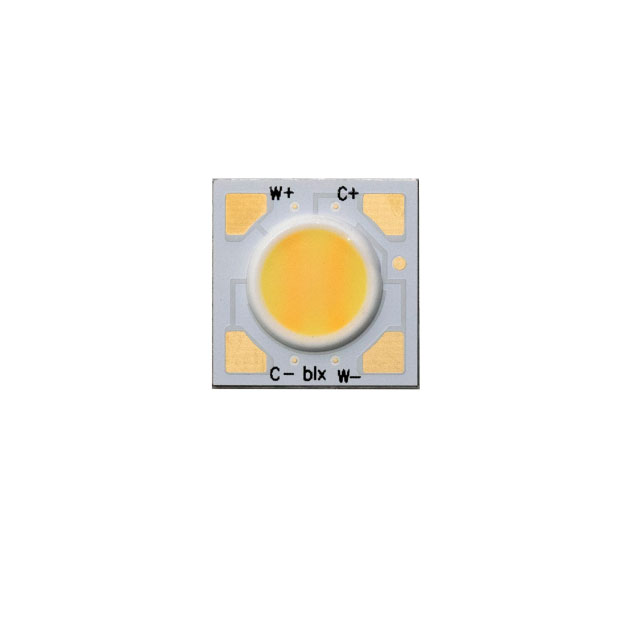

BXRV-TR-1830G-10A0-B-25

Active

BRIDGELUX

COB LED, WHITE, 128LM/W, 6500K, 92CRI ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRV-TR-1830G-10A0-B-25

Active

BRIDGELUX

COB LED, WHITE, 128LM/W, 6500K, 92CRI ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRV-TR-1830G-10A0-B-25

CCT (K)	1800 K, 3000 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	480 mA
Current - Test	250 mA
Height [z]	1.65 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	10 mm
Lumens/Watt @ Current - Test	113 lm/W
Luminous Flux @ Current/Temperature	980 lm
Size / Dimension [x]	15.9 mm
Size / Dimension [y]	15.9 mm
Type	Chip On Board (COB)
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ)	34.8 V

BXRV-DR-18 Series

Part	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Type	CRI (Color Rendering Index)	Height [z]	Configuration	Viewing Angle	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Lens Type	CCT (K)	Color	Current - Test	Size / Dimension [y]	Size / Dimension [x]	CCT (K) [Max]	CCT (K) [Min]	Voltage - Forward (Vf) (Typ)	Temperature - Test	Features	Size / Dimension [diameter]
BRIDGELUX BXRV-DR-1827H-1000-A-13	420 mA	9.3 mm	Chip On Board (COB)	95	1.7 mm	Rectangle	110 °	494 lm	83 lm/W	Flat	2250 K	Warm White	350 mA	12 mm	15 mm
BRIDGELUX BXRV-DR-1830G-2000-A-13	720 mA	14 mm	Chip On Board (COB)	90	1.7 mm	Rectangle	110 °	2312 lm	115 lm/W	Flat	2400 K	Warm White	600 mA	20 mm	24 mm	3000 K	1800 K	33.5 V
BRIDGELUX BXRV-DR-1830G-1000-G-13	300 mA	9.3 mm	Chip On Board (COB)	90	1.7 mm	Rectangle	110 °		115 lm/W	Flat	2400 K	Warm White	250 mA	12 mm	15 mm	3000 K	1800 K
BRIDGELUX BXRV-DR-1827G-0600-A-13	420 mA	9.3 mm	Chip On Board (COB)	90	1.7 mm	Rectangle	110 °	613 lm	103 lm/W	Flat	1800 K 2700 K	Warm White	350 mA	12 mm	15 mm
BRIDGELUX BXRV-DR-1830H-1000-A-13	420 mA	9.3 mm	Chip On Board (COB)	95	1.7 mm	Rectangle	110 °	570 lm	96 lm/W	Flat	2400 K	Warm White	350 mA	12 mm	15 mm	3000 K	1800 K
BRIDGELUX BXRV-TR-1840G-1000-B-33	230 mA	9.4 mm	LED Module	90	1.7 mm	Square		628 lm	89.3 lm/W	Flat	4000 K	Neutral White		15.8 mm	15.8 mm			30.6 V	85 °C
BRIDGELUX BXRV-DR-1827G-1000-G-13	300 mA	9.3 mm	Chip On Board (COB)	90	1.7 mm	Rectangle	110 °	438 lm	103 lm/W	Flat	2250 K	Warm White	250 mA	12 mm	15 mm
BRIDGELUX BXRV-DR-1830G-4000-A-13-S2	1.4 A	18.3 mm	Chip On Board (COB)	90	3.8 mm	Round	110 °	4887 lm	112 lm/W	Flat	1800 K 3000 K	Warm White	1.29 A					33.8 V		With Holder	45 mm
BRIDGELUX BXRV-TR-1840G-2000-B-33	170 mA	13.3 mm	LED Module	90	1.7 mm	Square		447 lm	81.7 lm/W	Flat	4000 K	Neutral White		18.8 mm	18.8 mm			32.18 V	85 °C
BRIDGELUX BXRV-TR-1830G-10A0-B-25	480 mA	10 mm	Chip On Board (COB)	90	1.65 mm	Square	130 °	980 lm	113 lm/W	Flat	1800 K 3000 K	Warm White	250 mA	15.9 mm	15.9 mm			34.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.45
		10	$ 4.56
		100	$ 3.73
		500	$ 3.15
		1000	$ 2.89
		2000	$ 2.77
Newark	Each	1	$ 7.37
		10	$ 5.81
		25	$ 5.51
		60	$ 5.20
		120	$ 4.90
		270	$ 4.69
		510	$ 4.49

Description

General part information

BXRV-DR-18 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Vesta™ White, Warm Square
