33_MMPX-PC185-50-2/1--_NE

Active

Huber+Suhner, Inc.

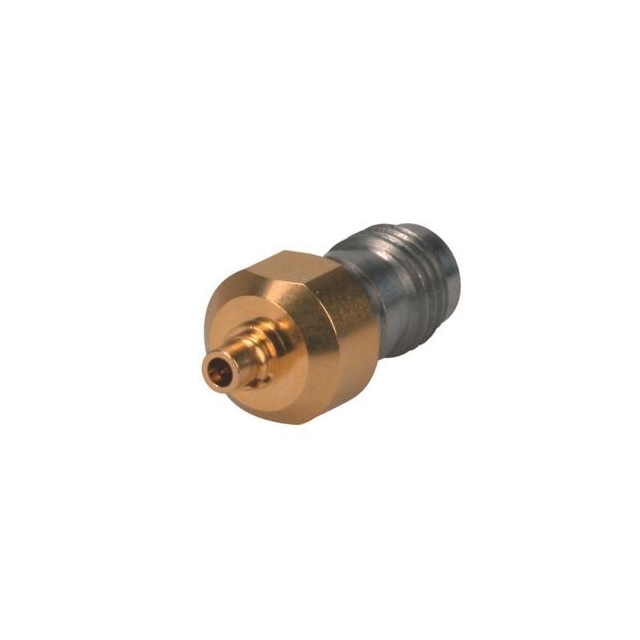

RF ADAPTER, MMPX PLUG-1.85MM JACK ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

RF ADAPTER, MMPX PLUG-1.85MM JACK ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	33_MMPX-PC185-50-2/1--_NE

Adapter Series	1.85 mm
Adapter Series	MMPX
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Beryllium Copper, Stainless Steel
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	MMPX Plug, Male Pin
Convert To (Adapter End)	Female Socket, 1.85mm Jack
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	67 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Mounting Type	Center Contact Plating	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Style	Conversion Type	Impedance	Body Finish	Fastening Type	Convert From (Adapter End)	Center Contact Material	Adapter Type	Frequency - Max [Max]	Adapter Series	Adapter Series	Body Material
Huber+Suhner, Inc. 33_MMPX-PC185-50-2/1--_NE	Free Hanging (In-Line)	Gold	1.85mm Jack Female Socket	155 °C	-55 °C	500	Straight	Between Series	50 Ohms	Gold	Snap-On Threaded	MMPX Plug Male Pin	Beryllium Copper Brass	Plug to Jack	67 GHz	1.85 mm	MMPX	Beryllium Copper Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector MMPX Plug, Male Pin To 1.85mm Jack, Female Socket 50 Ohms
