RJF5442203100BTX

Active

Amphenol Socapex

CABLE MOD 8P8C JACK-PLUG 0.98'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RJF5442203100BTX

Active

Amphenol Socapex

CABLE MOD 8P8C JACK-PLUG 0.98'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJF5442203100BTX

Cable Type	Round Cable
Color	Gray
Connector Type	Jack to Plug
Features	Circular Push Pull Coupling
Length [x]	0.98 ft
Length [x]	300 mm
Mounting Type	Panel Mount, Flange
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Shielding	Shielded
Style	Cat5e, Industrial Environments - IP67

RJF54 Series

Part	Shell Material, Finish	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Type	Convert From (Adapter End)	Ratings	Shielding	Convert To (Adapter End)	Mounting Type	Features	Length [x]	Length [x]	Number of Positions/Contacts	Color	Cable Type	Connector Type	Style	Number of Rows	Number of Ports	Tab Direction	Orientation	Termination	LED Color	Length	Length	Note	Fastening Type	Mating Cycles
Amphenol Socapex RJF544621	Plastic	85 °C	-40 °C	IP68 - Dust Tight Waterproof	Coupler	Jack 8p8c (RJ45)	Cat6	Shielded	8p8c (RJ45) Jack	Panel Mount Square Flange
Amphenol Socapex RJF5442M1	Metallized Plastic	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Coupler	Jack 8p8c (RJ45)	Cat5e	Unshielded	8p8c (RJ45) Jack	Panel Mount Square Flange	Push Pull Coupling
Amphenol Socapex RJF54462S1	Plastic	85 °C	-40 °C	IP68 - Dust Tight Waterproof	Coupler	Jack 8p8c (RJ45)	Cat6	Shielded	8p8c (RJ45) Jack	Panel Mount Square Flange
Amphenol Socapex RJF54421RA		85 °C	-40 °C		Coupler	Jack 8p8c (RJ45)	Cat5e	Shielded	8p8c (RJ45) Jack	Panel Mount Right Angle Square Flange	Circular Bayonet Coupling
Amphenol Socapex RJF5442203100BTX								Shielded		Flange Panel Mount	Circular Push Pull Coupling	0.98 ft	300 mm	8p8c (RJ45 Ethernet)	Gray	Round Cable	Jack to Plug	Cat5e Industrial Environments - IP67
Amphenol Socapex RJF54462SM1	Metallized Nickel Plated Plastic	85 °C	-40 °C	IP68 - Dust Tight Waterproof	Coupler	Jack 8p8c (RJ45)	Cat6	Shielded	8p8c (RJ45) Jack	Panel Mount Square Flange
Amphenol Socapex RJF54421	Plastic	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Coupler	Jack 8p8c (RJ45)	Cat5e	Unshielded	8p8c (RJ45) Jack	Panel Mount Square Flange	Push Pull Coupling
Amphenol Socapex RJF5442M200		85 °C	-40 °C	IP67 - Dust Tight Waterproof			Cat5e	Unshielded		Panel Mount Square Flange	Push Pull Coupling			8p8c (RJ45 Ethernet)			Jack		1	1	User Selectable	Straight	PC Board Solder	Does Not Contain LED
Amphenol Socapex RJF5442215100BTX								Shielded		Flange Panel Mount	Circular Push Pull Coupling			8p8c (RJ45 Ethernet)	Gray	Round Cable	Jack to Plug	Cat5e Industrial Environments - IP67							4.92 '	1.5 m
Amphenol Socapex RJF5446		85 °C	-40 °C	IP67 - Dust Tight Waterproof				Unshielded		Free Hanging (In-Line)	Shock Resistant Toolless Vibration Resistant						Housing for Prewired RJ45 Cordset										Plug Not Provided	Push-Pull	500

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 60.71
		10	$ 55.71
		25	$ 53.57
		50	$ 51.78
		100	$ 48.93

Description

General part information

RJF54 Series

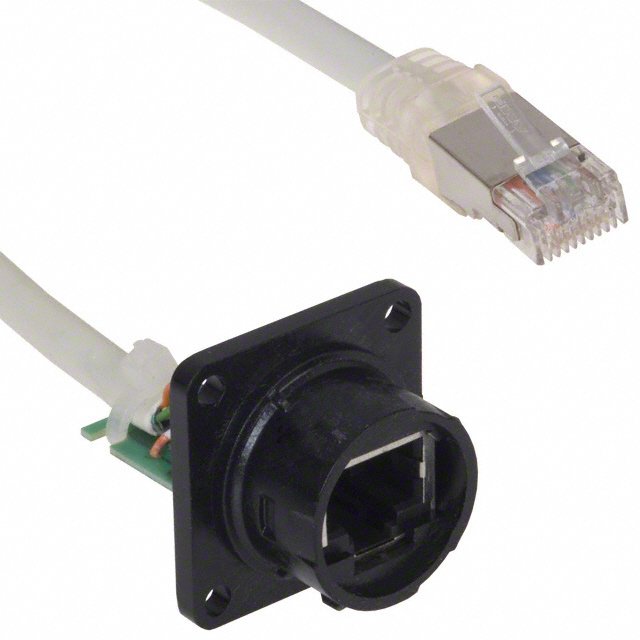

Modular Cable Jack to Plug 8p8c (RJ45, Ethernet) 0.98' (300.0mm) Shielded
