P0915N-QC20BR5K

Active

TT Electronics/BI

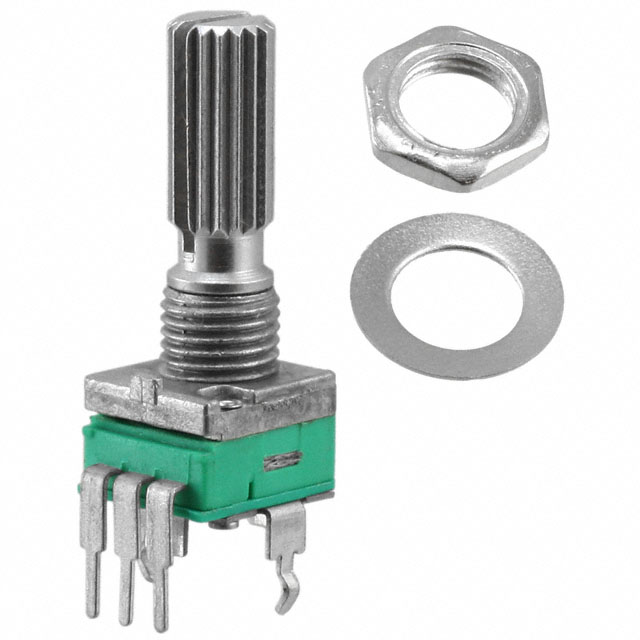

POT 5K OHM 1/20W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P0915N-QC20BR5K

Active

TT Electronics/BI

POT 5K OHM 1/20W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P0915N-QC20BR5K

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length [z]	20 mm
Actuator Length [z]	0.787 in
Actuator Type	Knurled and Slotted
Adjustment Type	Top Adjustment
Built in Switch	False
Bushing Thread	0.75
Bushing Thread	M7
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.05 W
Power (Watts)	50 mW
Resistance (Ohms)	5 kOhms
Resistive Material	Conductive Plastic
Rotation	300 ░
Size - Body [x]	0.447 in
Size - Body [x]	11.35 mm
Size - Body [y]	0.374 in
Size - Body [y]	9.5 mm
Taper	Linear
Termination Style	Board Locks, PC Pins
Tolerance	20 %

P0915N Series

Part	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Rotation	Taper	Adjustment Type	Size - Body [y]	Size - Body [x]	Size - Body [y]	Size - Body [x]	Actuator Type	Resistance (Ohms)	Termination Style	Actuator Length [z]	Actuator Length	Power (Watts)	Power (Watts)	Number of Gangs	Bushing Thread	Bushing Thread	Resistive Material	Number of Turns	Tolerance	Actuator Length [z]	Power (Watts)	Resistance (Ohms)
TT Electronics/BI P0915N-QC15BR50K	0.236 in	6 mm	300 ░	Linear	Top Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	Knurled and Slotted	50 kOhms	Board Locks PC Pins	0.591 in	15 mm	0.05 W	50 mW	1	0.75	M7	Conductive Plastic	1	20 %
TT Electronics/BI P0915N-FC20BR50K	0.236 in	6 mm	300 ░	Linear	Top Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	Flatted	50 kOhms	Board Locks PC Pins	0.787 in		0.05 W	50 mW	1	0.75	M7	Conductive Plastic	1	20 %	20 mm
TT Electronics/BI P0915N-EC15BR100K	0.236 in	6 mm	300 ░	Linear	Top Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	Slotted	100 kOhms	Board Locks PC Pins	0.591 in	15 mm	0.05 W	50 mW	1	0.75	M7	Conductive Plastic	1	20 %
TT Electronics/BI P0915N-FC15AR50K	0.236 in	6 mm	300 ░	Logarithmic	Top Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	Flatted	50 kOhms	Board Locks PC Pins	0.591 in	15 mm	0.025 W		1	0.75	M7	Conductive Plastic	1	20 %		0.025 W
TT Electronics/BI P0915N-EC15BR2K	0.236 in	6 mm	300 ░	Linear	Top Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	Slotted		Board Locks PC Pins	0.591 in	15 mm	0.05 W	50 mW	1	0.75	M7	Conductive Plastic	1	20 %			2k
TT Electronics/BI P0915N-FC20BR10K	0.236 in	6 mm	300 ░	Linear	Top Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	Flatted		Board Locks PC Pins	0.787 in		0.05 W	50 mW	1	0.75	M7	Conductive Plastic	1	20 %	20 mm		10k
TT Electronics/BI P0915N-QC15AR500K	0.236 in	6 mm	300 ░	Logarithmic	Top Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	Knurled and Slotted	500 kOhms	Board Locks PC Pins	0.591 in	15 mm	0.025 W		1	0.75	M7	Conductive Plastic	1	20 %		0.025 W
TT Electronics/BI P0915N-QC20BR5K	0.236 in	6 mm	300 ░	Linear	Top Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	Knurled and Slotted	5 kOhms	Board Locks PC Pins	0.787 in		0.05 W	50 mW	1	0.75	M7	Conductive Plastic	1	20 %	20 mm
TT Electronics/BI P0915N-QC20BR50K	0.236 in	6 mm	300 ░	Linear	Top Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	Knurled and Slotted	50 kOhms	Board Locks PC Pins	0.787 in		0.05 W	50 mW	1	0.75	M7	Conductive Plastic	1	20 %	20 mm
TT Electronics/BI P0915N-FC15BR10K	0.236 in	6 mm	300 ░	Linear	Top Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	Flatted		Board Locks PC Pins	0.591 in	15 mm	0.05 W	50 mW	1	0.75	M7	Conductive Plastic	1	20 %			10k

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.60
		10	$ 2.29
		25	$ 2.05
		40	$ 1.97
		80	$ 1.89
		230	$ 1.81
		440	$ 1.50
		1040	$ 1.42
		5200	$ 1.18

Description

General part information

P0915N Series

5k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.05W, 1/20W PC Pins, Board Locks
