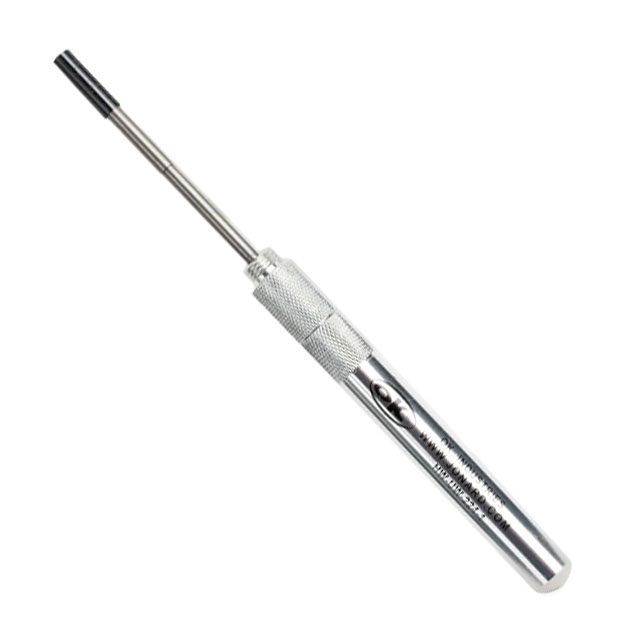

HW-UW-224-1

Active

OK INDUSTRIES

HAND WRAP & UNWRAP TOOL, MULTIFUNCTION, 22-24 AWG WRAP, 20-26 AWG UNWRAP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturer Catalogue EN

HW-UW-224-1

Active

OK INDUSTRIES

HAND WRAP & UNWRAP TOOL, MULTIFUNCTION, 22-24 AWG WRAP, 20-26 AWG UNWRAP

Deep-Dive with AI

DocumentsDatasheet Manufacturer Catalogue EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-UW-224-1

Features	Aluminum Body, Regular Wrapping
Style	Hand, Manual
Tool Type	Unwrap, Wrap
Wire Gauge [Max] [custom]	26 AWG
Wire Gauge [Max] [custom]	24 AWG
Wire Gauge [Min] [custom]	22 AWG
Wire Gauge [Min] [custom]	20 AWG

HW-UW Series

Part	Style	Wire Gauge [Min] [custom]	Wire Gauge [Max] [custom]	Wire Gauge [Min] [custom]	Wire Gauge [Max] [custom]	Features	Tool Type	Wire Gauge [Max]	Wire Gauge [Min]	Wire Gauge
OK INDUSTRIES HW-UW-224-1	Hand Manual	22 AWG	26 AWG	20 AWG	24 AWG	Aluminum Body Regular Wrapping	Unwrap Wrap
OK INDUSTRIES HW-UW-2426	Hand Manual					Aluminum Body Regular Wrapping	Unwrap Wrap	26 AWG 26 AWG	20 AWG 24 AWG
OK INDUSTRIES HW-UW-30	Hand Manual					Aluminum Body Modified Wrapping	Unwrap Wrap	32 AWG	24 AWG	30 AWG
OK INDUSTRIES HW-UW-20	Hand Manual					Aluminum Body Regular Wrapping	Unwrap Wrap
OK INDUSTRIES HW-UW-18-19	Hand Manual					Aluminum Body Regular Wrapping	Unwrap Wrap	19 AWG	17.5 AWG
OK INDUSTRIES HW-UW-2829M	Hand Manual					Aluminum Body Modified Wrapping	Unwrap Wrap	29 AWG 32 AWG	24 AWG 28 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 114.62
		5	$ 109.95
Newark	Each	1	$ 109.95

Description

General part information

HW-UW Series

The HW-UW-224-1 is a Hand Wrapping Tool designed to produce perfect wire wrapped connections. Precision, long-lasting tools for use where occasional wraps are required or where power wire-wrapping tools are not practical.
