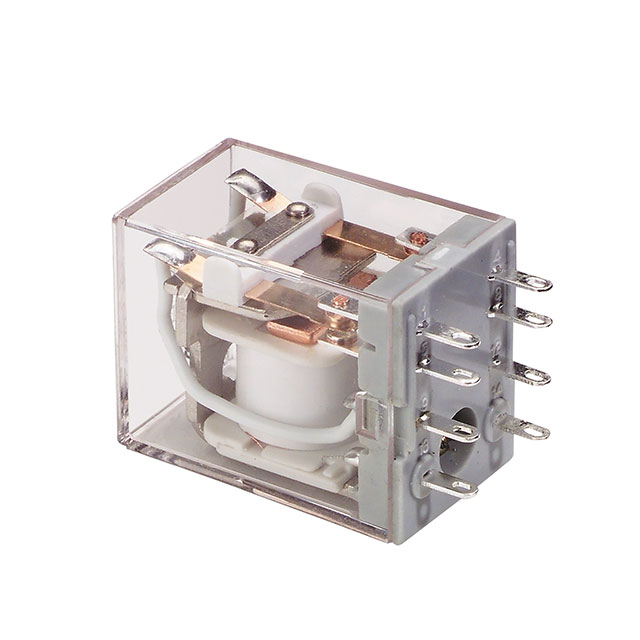

GPRM-B4C05ZC-3

Active

c3controls

RELAY GEN PURPOSE 4PDT 5A 24V

Search across all available documentation for this part.

Active

c3controls

RELAY GEN PURPOSE 4PDT 5A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Release Time	Coil Voltage	Coil Resistance	Switching Voltage	Relay Type	Mounting Type	Must Operate Voltage	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Coil Type	Termination Style	Contact Form	Contact Material	Operate Time	Contact Rating (Current)	Features
c3controls GPRM-B4C05ZC-3	25 ms	24 VDC	650 Ohms	28 VDC 240 VAC	General Purpose	Socketable	19.2 VDC	36.9 mA	55 °C	-25 °C	2.4 VDC	Non Latching	Plug In	4PDT (4 Form C)	Silver Nickel (AgNi)	25 ms	5 A	Lighted Indicator
c3controls GPRM-B4C05D-3	25 ms	120 VAC	4.55 kOhms	28 VDC 240 VAC	General Purpose	Socketable	102 VAC	10 mA	55 °C	-25 °C	36 VAC	Non Latching	Plug In	4PDT (4 Form C)	Silver Nickel (AgNi)	25 ms	5 A	Lighted Indicator

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
