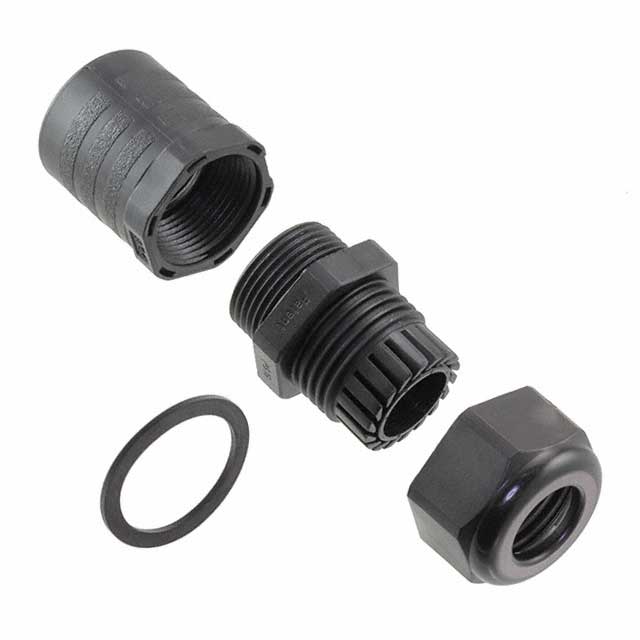

CL102021

Active

Souriau-Sunbank by Eaton

CONN BACKSHELL SZ2 BLACK PG16

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN BACKSHELL SZ2 BLACK PG16

Technical Specifications

Parameters and characteristics for this part

Specification	CL102021

Cable Exit	180 °
Cable Opening [Max] [diameter]	0.55 in
Cable Opening [Max] [diameter]	13.97 mm
Cable Opening [Min] [diameter]	0.39 in
Cable Opening [Min] [diameter]	9.91 mm
Color	Black
For Use With/Related Products	Clipper Sealed Connectors
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Shell Size - Insert	2
Thread Size	PG16

Part	Ingress Protection	Thread Size	Shell Size - Insert	Features	For Use With/Related Products	Type	Cable Exit	Cable Opening [custom]	Cable Opening [custom]	Material	Material Flammability Rating	Color	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Souriau-Sunbank by Eaton CL102041	IP67 - Dust Tight Waterproof	PG16	2	Gasket	Flexible Conduit Systems	Backshell	180 °	0.67 in	17.02 mm	Thermoplastic	UL94 V-0	Black
Souriau-Sunbank by Eaton CL102021	IP68 - Dust Tight Waterproof	PG16	2		Clipper Sealed Connectors		180 °			Thermoplastic	UL94 V-0	Black	0.55 in	0.39 in	13.97 mm	9.91 mm
Souriau-Sunbank by Eaton CL102030	IP40	PG16	2	Clamp Screws	Clipper Unsealed Connectors	Cable Clamp	180 °			Thermoplastic	UL94 V-0	Black					6.1 mm	0.24 in	0.63 in	16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Black Connector Backshell, Anti-Decoupling PG16 2
