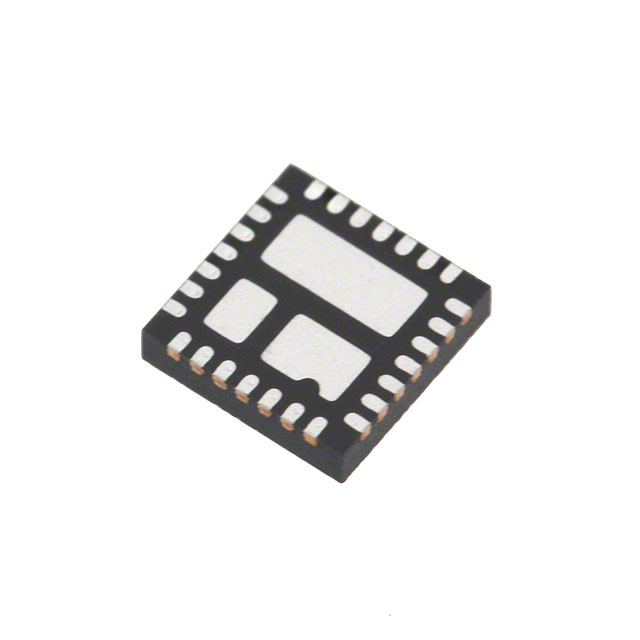

SC414MLTRT
ObsoleteSemtech Corporation
SWITCHING REGULATOR, VOLTAGE-MODE, 6A, 1000KHZ SWITCHING FREQ-MAX, 4 X 4 MM, HALOGEN FREE AND ROHS COMPLIANT, MLP-28
Deep-Dive with AI
Search across all available documentation for this part.
SC414MLTRT
ObsoleteSemtech Corporation
SWITCHING REGULATOR, VOLTAGE-MODE, 6A, 1000KHZ SWITCHING FREQ-MAX, 4 X 4 MM, HALOGEN FREE AND ROHS COMPLIANT, MLP-28
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SC414MLTRT |
|---|---|
| Frequency - Switching | 1 MHz |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 28-VFQFN Exposed Pad |
| Supplier Device Package | 28-MLPQ (4x4) |
| Topology | Linear (LDO) (1), Step-Down (Buck) Synchronous (1) |
| Voltage - Supply [Max] | 28 V |
| Voltage - Supply [Min] | 3 V |
| Voltage/Current - Output 1 [custom] | 6 A |
| Voltage/Current - Output 1 [custom] | Adj |
| Voltage/Current - Output 2 [custom] | 150 mA |
| Voltage/Current - Output 2 [custom] | 5 V |
| w/LED Driver | False |
| w/Sequencer | False |
| w/Supervisor | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each (Supplied on Full Reel) | 3000 | $ 2.97 | |
| 6000 | $ 2.78 | |||
| 12000 | $ 2.58 | |||
| 18000 | $ 2.48 | |||
| 30000 | $ 2.44 | |||
Description
General part information
SC414 Series
PMIC - Voltage Regulators - Linear Switching 2 Output Step-Down (Buck) Synchronous (1), Linear (LDO) (1) 1MHz 28-MLPQ (4x4)
