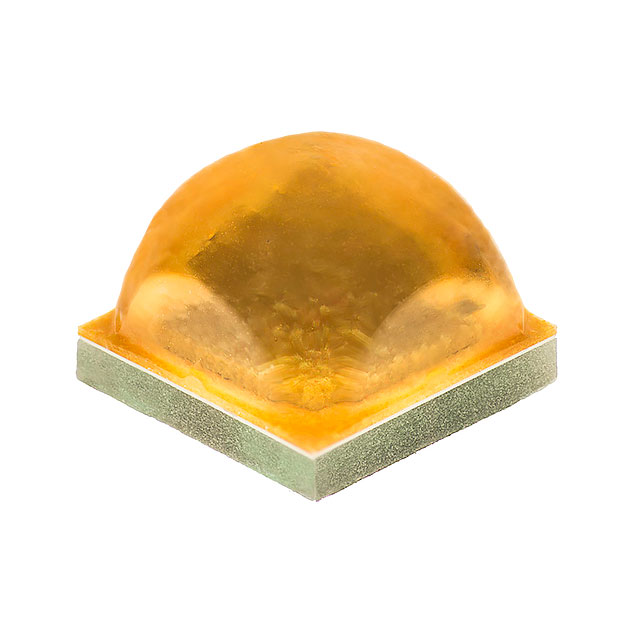

XPLBWT-00-0000-000HV230G

Active

Cree LED

XLAMP XP-L GEN 2 LIGHT EMITTING DIODE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XPLBWT-00-0000-000HV230G

Active

Cree LED

XLAMP XP-L GEN 2 LIGHT EMITTING DIODE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XPLBWT-00-0000-000HV230G

CCT (K)	3000 K
Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max [Max]	3 A
Current - Test	1.05 A
Flux @ 85°C, Current - Test	410 lm
Height - Seated (Max) [Max] [z]	2.81 mm
Height - Seated (Max) [Max] [z]	0.111 in
Lumens/Watt @ Current - Test	138 lm/W
Mounting Type	Surface Mount
Package / Case	3535 Metric
Package / Case	1414
Size / Dimension [x]	3.45 mm
Size / Dimension [x]	0.136 in
Size / Dimension [y]	0.136 in
Size / Dimension [y]	3.45 mm
Thermal Resistance of Package	2.2 °C/W
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	2.82 V

XPLBWT Series

...

Part	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Lumens/Watt @ Current - Test	CCT (K)	Package / Case	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Viewing Angle	Mounting Type	CRI (Color Rendering Index)	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Flux @ 85°C, Current - Test	Color	Thermal Resistance of Package [custom]	Thermal Resistance of Package
Cree LED XPLBWT-00-0000-000UV20CB	2.79 V	3 A	140 lm/W	6500 K	3535 Metric	1414	2.81 mm	0.111 in	1414	125 °	Surface Mount	90	1.05 A	3.45 mm	0.136 in	0.136 in	3.45 mm	410 lm	Cool White	0.6 °C/W
Cree LED XPLBWT-00-0000-0000V40E1	2.82 V	3 A	152 lm/W	6500 K	3535 Metric	1414	2.81 mm	0.111 in	2-SMD	125 °	Surface Mount		1.05 A	3.45 mm	0.136 in	0.136 in	3.45 mm	450 lm	Cool White		2.2 °C/W
Cree LED XPLBWT-00-0000-000UV20E2	2.79 V	3 A	140 lm/W	5700 K	3535 Metric	1414	2.81 mm	0.111 in	1414	125 °	Surface Mount	90	1.05 A	3.45 mm	0.136 in	0.136 in	3.45 mm	410 lm	Cool White	0.6 °C/W
Cree LED XPLBWT-00-0000-000UV240H	2.79 V	3 A	140 lm/W	4000 K	3535 Metric	1414	2.81 mm	0.111 in	1414	125 °	Surface Mount	90	1.05 A	3.45 mm	0.136 in	0.136 in	3.45 mm	410 lm	Neutral White	0.6 °C/W
Cree LED XPLBWT-00-0000-000BV60E4	2.82 V	3 A	166 lm/W		3535 Metric	1414	2.81 mm	0.111 in	2-SMD	125 °	Surface Mount	70	1.05 A	3.45 mm	0.136 in	0.136 in	3.45 mm	490 lm	Neutral White		2.2 °C/W
Cree LED XPLBWT-00-0000-000HV230G	2.82 V	3 A	138 lm/W	3000 K	3535 Metric	1414	2.81 mm	0.111 in		125 °	Surface Mount	80	1.05 A	3.45 mm	0.136 in	0.136 in	3.45 mm	410 lm	Warm White		2.2 °C/W
Cree LED XPLBWT-00-0000-000BV60E7	2.79 V	3 A			3535 Metric	1414	2.81 mm	0.111 in	1414	125 °	Surface Mount	70	1.05 A	3.45 mm	0.136 in	0.136 in	3.45 mm	490 lm	Warm White		2.2 °C/W
Cree LED XPLBWT-00-0000-000HV60E3	2.79 V	3 A		5000 K	3535 Metric	1414	2.81 mm	0.111 in	1414	125 °	Surface Mount	80	1.05 A	3.45 mm	0.136 in	0.136 in	3.45 mm	490 lm	Cool White	0.6 °C/W
Cree LED XPLBWT-00-0000-000UU30E6	2.82 V	3 A	111 lm/W	3500 K	3535 Metric	1414	2.81 mm	0.111 in	2-SMD	125 °	Surface Mount	90	1.05 A	3.45 mm	0.136 in	0.136 in	3.45 mm	330 lm	Warm White		2.2 °C/W
Cree LED XPLBWT-00-0000-000HV550G	2.79 V	3 A	160 lm/W		3535 Metric	1414	2.81 mm	0.111 in	1414	125 °	Surface Mount	80	1.05 A	3.45 mm	0.136 in	0.136 in	3.45 mm	470 lm	Cool White	0.6 °C/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.96
		10	$ 3.76
		50	$ 3.65
		100	$ 3.37
		200	$ 3.06
	Digi-Reel®	1	$ 3.96
		10	$ 3.76
		50	$ 3.65
		100	$ 3.37
		200	$ 3.06
	Tape & Reel (TR)	500	$ 2.87
		1000	$ 2.64

Description

General part information

XPLBWT Series

LED Lighting XLamp® XP-L2 White, Warm 3000K 3-Step MacAdam Ellipse 2.82V 1.05A 125° 1414 (3535 Metric)
