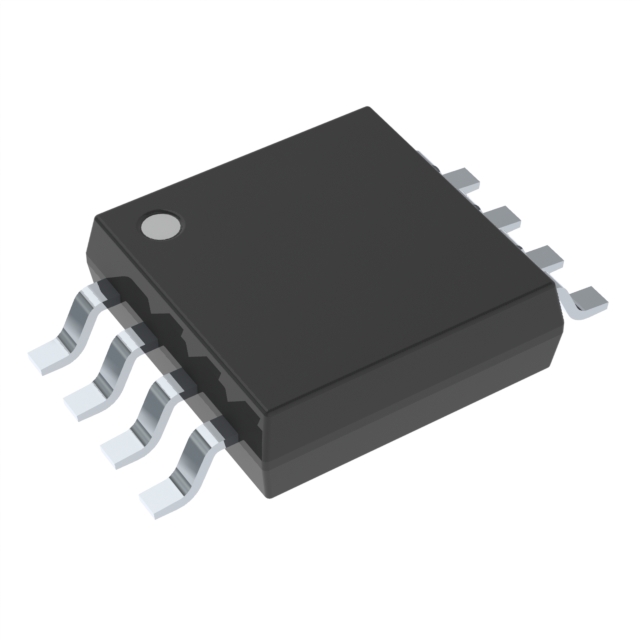

DG417LEUA+

Active

Analog Devices Inc./Maxim Integrated

IC SWITCH SPST-NCX1 35OHM 8UMAX

Deep-Dive with AI

Search across all available documentation for this part.

DG417LEUA+

Active

Analog Devices Inc./Maxim Integrated

IC SWITCH SPST-NCX1 35OHM 8UMAX

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DG417LEUA+

Channel Capacitance (CS(off), CD(off)) [custom]	8 pF
Channel Capacitance (CS(off), CD(off)) [custom]	8 pF
Channel-to-Channel Matching (ΔRon)	100 mOhm
Charge Injection	15 pC
Current - Leakage (IS(off)) (Max) [Max]	250 pA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	1
On-State Resistance (Max) [Max]	35 Ohm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-MSOP, 8-TSSOP
Package / Case	3 mm
Package / Case [custom]	0.118 in
Supplier Device Package	8-uMAX/uSOP
Switch Circuit	SPST - NC
Switch Time (Ton, Toff) (Max) [custom]	185 ns
Switch Time (Ton, Toff) (Max) [custom]	175 ns
Voltage - Supply, Dual (V±) [Max]	20 V
Voltage - Supply, Dual (V±) [Min]	-4.5 V
Voltage - Supply, Single (V+) [Max]	36 V
Voltage - Supply, Single (V+) [Min]	9 V

DG417 Series

Part	Switch Circuit	Supplier Device Package	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Channel-to-Channel Matching (ΔRon)	Number of Circuits	Multiplexer/Demultiplexer Circuit	Mounting Type	On-State Resistance (Max) [Max]	Voltage - Supply, Dual (V±) [Min]	Voltage - Supply, Dual (V±) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Charge Injection	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Current - Leakage (IS(off)) (Max) [Max]	Package / Case	Package / Case [y]	Package / Case [x]	Package / Case	Package / Case	Channel-to-Channel Matching (ΔRon) [Max]	Crosstalk	Package / Case [custom]
Analog Devices Inc./Maxim Integrated DG417LDY+T	SPST - NC	8-SOIC	36 V	9 V	100 mOhm	1	1:1	Surface Mount	35 Ohm	-4.5 V	20 V	85 °C	-40 °C	15 pC	185 ns	175 ns	8 pF	8 pF	250 pA	8-SOIC	3.9 mm	0.154 in
Analog Devices Inc./Maxim Integrated DG417DJ	SPST - NC	8-PDIP	30 V	10 V		1	1:1	Through Hole	35 Ohm	-4.5 V	20 V	85 °C	-40 °C	3 pC	145 ns	175 ns	8 pF	8 pF	250 pA	8-DIP			0.3 in	7.62 mm	3 Ohm	-85 dB
Analog Devices Inc./Maxim Integrated DG417CY+T	SPST - NC	8-SOIC	30 V	10 V		1	1:1	Surface Mount	35 Ohm	-4.5 V	20 V	70 °C	0 °C	3 pC	145 ns	175 ns	8 pF	8 pF	250 pA	8-SOIC	3.9 mm	0.154 in			3 Ohm	-85 dB
Analog Devices Inc./Maxim Integrated DG417LEUA+T	SPST - NC	8-uMAX/uSOP	36 V	9 V	100 mOhm	1	1:1	Surface Mount	35 Ohm	-4.5 V	20 V	85 °C	-40 °C	15 pC	185 ns	175 ns	8 pF	8 pF	250 pA	8-MSOP 8-TSSOP			3 mm				0.118 in
Analog Devices Inc./Maxim Integrated DG417CJ+	SPST - NC	8-PDIP	30 V	10 V		1	1:1	Through Hole	35 Ohm	-4.5 V	20 V	70 °C	0 °C	3 pC	145 ns	175 ns	8 pF	8 pF	250 pA	8-DIP			0.3 in	7.62 mm	3 Ohm	-85 dB
Analog Devices Inc./Maxim Integrated DG417LDY+	SPST - NC	8-SOIC	36 V	9 V	100 mOhm	1	1:1	Surface Mount	35 Ohm	-4.5 V	20 V	85 °C	-40 °C	15 pC	185 ns	175 ns	8 pF	8 pF	250 pA	8-SOIC	3.9 mm	0.154 in
Analog Devices Inc./Maxim Integrated DG417CJ	SPST - NC	8-PDIP	30 V	10 V		1	1:1	Through Hole	35 Ohm	-4.5 V	20 V	70 °C	0 °C	3 pC	145 ns	175 ns	8 pF	8 pF	250 pA	8-DIP			0.3 in	7.62 mm	3 Ohm	-85 dB
Analog Devices Inc./Maxim Integrated DG417LEUA+	SPST - NC	8-uMAX/uSOP	36 V	9 V	100 mOhm	1	1:1	Surface Mount	35 Ohm	-4.5 V	20 V	85 °C	-40 °C	15 pC	185 ns	175 ns	8 pF	8 pF	250 pA	8-MSOP 8-TSSOP			3 mm				0.118 in
Analog Devices Inc./Maxim Integrated DG417DY	SPST - NC	8-SOIC	30 V	10 V		1	1:1	Surface Mount	35 Ohm	-4.5 V	20 V	85 °C	-40 °C	3 pC	145 ns	175 ns	8 pF	8 pF	250 pA	8-SOIC	3.9 mm	0.154 in			3 Ohm	-85 dB
Analog Devices Inc./Maxim Integrated DG417CY	SPST - NC	8-SOIC	30 V	10 V		1	1:1	Surface Mount	35 Ohm	-4.5 V	20 V	70 °C	0 °C	3 pC	145 ns	175 ns	8 pF	8 pF	250 pA	8-SOIC	3.9 mm	0.154 in			3 Ohm	-85 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.85
		10	$ 6.19
		50	$ 5.90
		100	$ 5.12
		250	$ 4.89
		500	$ 4.46
		1000	$ 3.89
		2500	$ 3.74

Description

General part information

DG417 Series

1 Circuit IC Switch 1:1 35Ohm 8-uMAX/uSOP

Documents

Technical documentation and resources

No documents available
