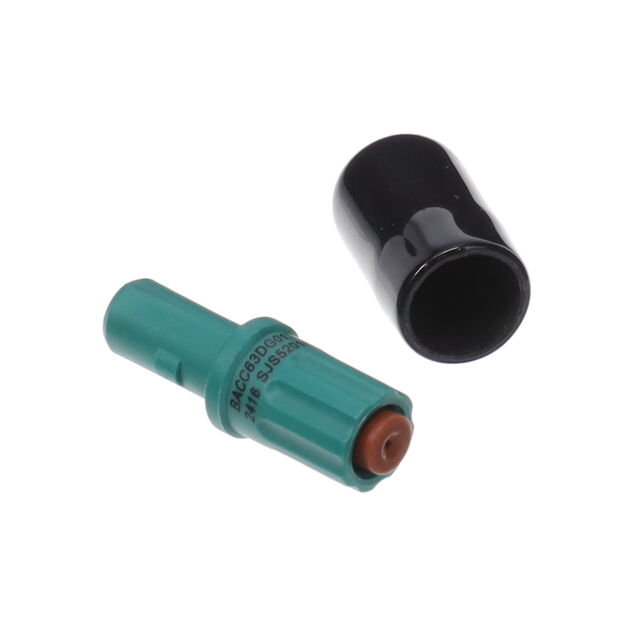

SJS520100

Active

AMPHENOL PCD

CONN PLUG HSG FMALE 1POS INLINE

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN PLUG HSG FMALE 1POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	SJS520100

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Detent Lock
Housing Color	Green
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Operating Temperature [Max]	203 °F
Operating Temperature [Min]	-55 °C
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	6
Shielding	Unshielded
Type	For Female Sockets

Part	Shell Material	Housing Color	Mounting Type	Note	Contact Shape	Shielding	Fastening Type	Connector Type	Material Flammability Rating	Contact Size	Number of Positions	Ingress Protection	Type	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type
AMPHENOL PCD SJS520100	Polyamide (PA66) Nylon 6/6	Green	Free Hanging (In-Line)	Contacts Not Included	Circular	Unshielded	Detent Lock	Plug Housing	UL94 V-0	20	1	IP67 - Dust Tight Waterproof	For Female Sockets	6	203 °F	-55 °C	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Position Circular Connector Plug Housing Free Hanging (In-Line)

Technical documentation and resources

No documents available
