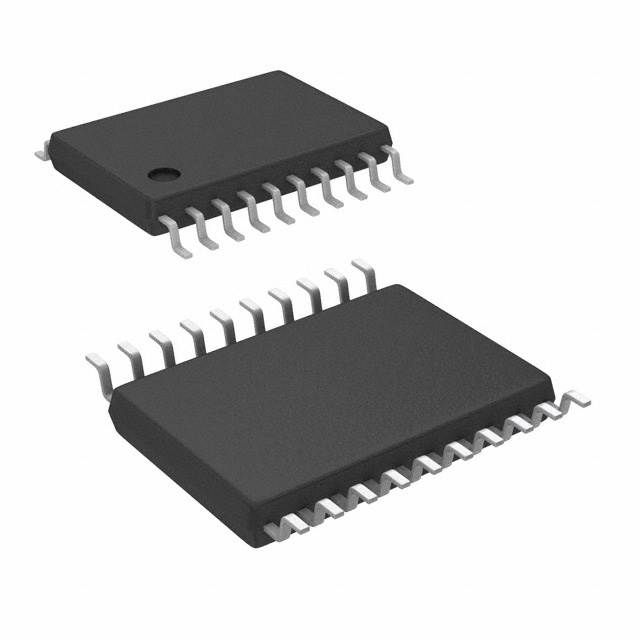

NVT2008PW,118
ActiveFreescale Semiconductor - NXP
IC TRANSLATOR BIDIR 20TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NVT2008PW,118
ActiveFreescale Semiconductor - NXP
IC TRANSLATOR BIDIR 20TSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NVT2008PW,118 |
|---|---|
| Channel Type | Bidirectional |
| Channels per Circuit | 8 |
| Features | Auto-Direction Sensing |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Open Drain, Push-Pull |
| Package / Case | 20-TSSOP |
| Package / Case [x] | 0.173 in |
| Package / Case [y] | 4.4 mm |
| Supplier Device Package | 20-TSSOP |
| Translator Type | Voltage Level |
| Voltage - VCCA [Max] | 3.6 V |
| Voltage - VCCA [Min] | 1 V |
| Voltage - VCCB [Max] | 5.5 V |
| Voltage - VCCB [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.52 | |
| 10 | $ 1.36 | |||
| 25 | $ 1.29 | |||
| 100 | $ 1.06 | |||
| 250 | $ 0.99 | |||
| 500 | $ 0.87 | |||
| 1000 | $ 0.69 | |||
| Digi-Reel® | 1 | $ 1.52 | ||
| 10 | $ 1.36 | |||
| 25 | $ 1.29 | |||
| 100 | $ 1.06 | |||
| 250 | $ 0.99 | |||
| 500 | $ 0.87 | |||
| 1000 | $ 0.69 | |||
| Tape & Reel (TR) | 2500 | $ 0.64 | ||
| 5000 | $ 0.61 | |||
| 12500 | $ 0.59 | |||
Description
General part information
NVT2008 Series
Voltage Level Translator Bidirectional 1 Circuit 8 Channel 20-TSSOP
