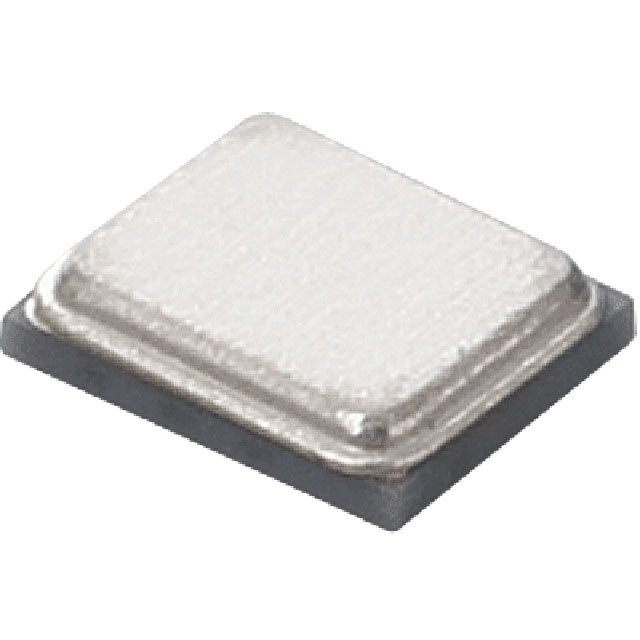

XRCED38M400FXQ50R0

Obsolete

Murata Power Solutions Inc.

CRYSTAL 38.4000MHZ 10PF SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CRYSTAL 38.4000MHZ 10PF SMD

Technical Specifications

Parameters and characteristics for this part

Specification	XRCED38M400FXQ50R0

ESR (Equivalent Series Resistance)	80 Ohm
Frequency	38.4 MHz
Frequency Stability	20 ppm
Frequency Tolerance	20 ppm
Height - Seated (Max) [Max]	0.33 mm
Height - Seated (Max) [Max] [z]	0.013 "
Load Capacitance	10 pF
Mounting Type	Surface Mount
Operating Mode	Fundamental
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Package / Case	4-SMD, No Lead
Size / Dimension [x]	1.2 mm
Size / Dimension [x]	0.047 in
Size / Dimension [y]	1 mm
Size / Dimension [y]	0.039 "
Type	MHz Crystal

Part	Package / Case	Type	Mounting Type	Frequency	Operating Mode	Frequency Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Load Capacitance	Frequency Stability
Murata Power Solutions Inc. XRCED38M400FXQ50R0	4-SMD No Lead	MHz Crystal	Surface Mount	38.4 MHz	Fundamental	20 ppm	1.2 mm	1 mm	0.039 "	0.047 in	-30 ░C	85 °C	0.013 "	0.33 mm	80 Ohm	10 pF	20 ppm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

38.4 MHz ±20ppm Crystal 10pF 80 Ohms 4-SMD, No Lead
