9913-1.000

Active

Bivar Inc.

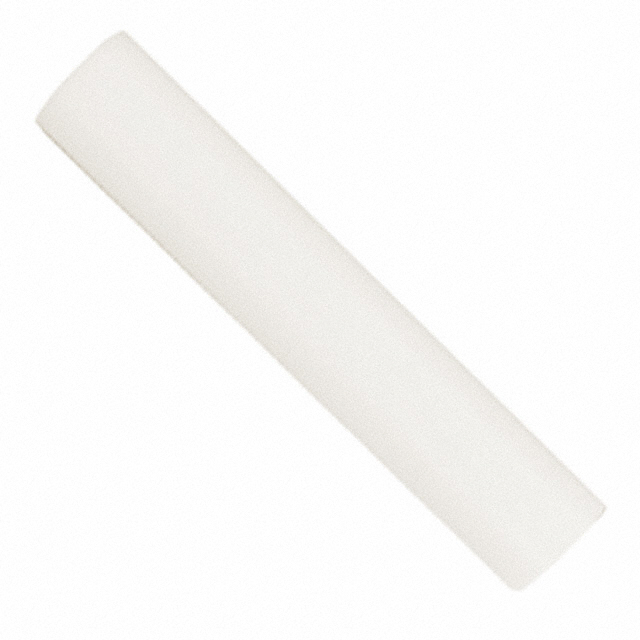

NYLON TUBULAR, 1.000 IN. LENGTH, 0.187 OD, 0.091 ID, #2 SCREW SIZE, WHITE / BAG

Search across all available documentation for this part.

Active

Bivar Inc.

NYLON TUBULAR, 1.000 IN. LENGTH, 0.187 OD, 0.091 ID, #2 SCREW SIZE, WHITE / BAG

Technical Specifications

Parameters and characteristics for this part

Part	Type	Gender	Screw, Thread Size	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material	Threaded/Unthreaded	Between Board Height	Between Board Height	Color	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Length - Overall	Length - Overall
Bivar Inc. 9913-1.000	Round Spacer	Female	#2	0.1875 in	0.188 "	4.78 mm	Nylon	Unthreaded	1 in	25.4 mm	Natural	0.091 in	2.31 mm	25.4 mm	1 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Round Spacer Unthreaded #2 Nylon 1.000" (25.40mm) 1" Natural

Technical documentation and resources
