SB640_T0_00001

Active

Panjit International Inc.

ISOLATION SCHOTTKY BARRIER RECTI

Search across all available documentation for this part.

Active

Panjit International Inc.

ISOLATION SCHOTTKY BARRIER RECTI

Technical Specifications

Parameters and characteristics for this part

Specification	SB640_T0_00001

Current - Average Rectified (Io)	6 A
Current - Reverse Leakage @ Vr	200 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C

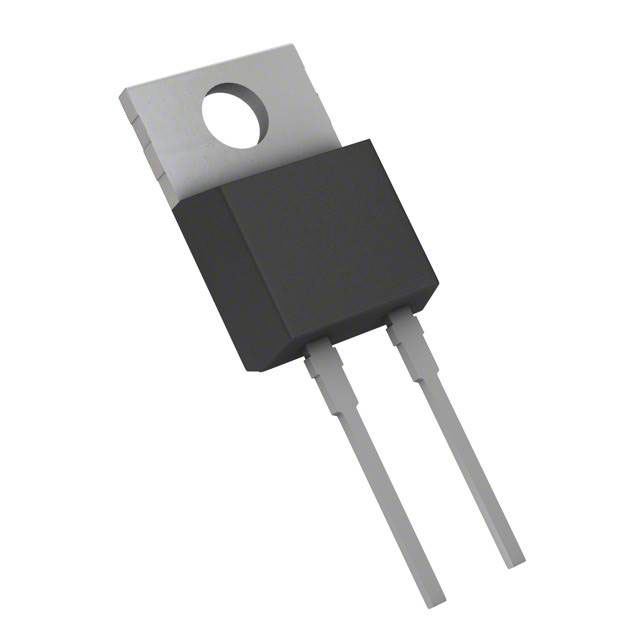

Package / Case	TO-220-2
Speed	200 mA, 500 ns
Supplier Device Package	TO-220AC
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	550 mV

Part	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Technology	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Current - Average Rectified (Io)	Speed
Panjit International Inc. SB640_T0_00001	TO-220AC	40 V	TO-220-2	Schottky	200 µA	550 mV	150 °C	-55 °C	Through Hole	6 A	200 mA 500 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	58000	$ 0.19

General part information

Diode 40 V 6A Through Hole TO-220AC
