CTD417-50AC

Active

Allegro MicroSystems

EVAL BOARD FOR CT417

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet XtremeSense™ TMR technology

CTD417-50AC

Active

Allegro MicroSystems

EVAL BOARD FOR CT417

Deep-Dive with AI

DocumentsDatasheet XtremeSense™ TMR technology

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CTD417-50AC

Embedded	False
Interface	Analog
Sensing Range [Max]	50 A
Sensing Range [Min]	-50 A
Sensitivity	20 mV/mT
Sensor Type	Current Sensor
Supplied Contents	Board(s)
Utilized IC / Part	CT417
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

CT417 Series

Part	Current - Sensing	Frequency	Supplier Device Package	Mounting Type	Sensitivity	Response Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Linearity	Polarization	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]	Number of Channels	Sensor Type	For Measuring	Output	Accuracy	Sensing Range [Min]	Sensing Range [Max]	Interface	Utilized IC / Part	Supplied Contents
Allegro MicroSystems CT417-HSN830DR	30 A	DC ~ 1MHz	8-SOIC	Surface Mount	66.7 mV/A	300 ns	3.6 V	3 V	0.1 %	Unidirectional	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	9 mA	1	Magnetoresistive	AC/DC	Ratiometric Voltage	1 %
Allegro MicroSystems CT417-HSN850MR	50 A	DC ~ 1MHz	8-SOIC	Surface Mount	20 mV/mT	300 ns	3.6 V	3 V	0.1 %	Bidirectional	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	9 mA	1	Magnetoresistive	AC/DC	Ratiometric Voltage	1 %
Allegro MicroSystems CT417-HSN865DR	65 A	DC ~ 1MHz	8-SOIC	Surface Mount	30.8 mV/A	300 ns	3.6 V	3 V	0.2 %	Unidirectional	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	9 mA	1	Magnetoresistive	AC/DC	Ratiometric Voltage	1 %
Allegro MicroSystems CT417-HSN820DR	20 A	DC ~ 1MHz	8-SOIC	Surface Mount	15.4 LSB/mT	300 ns	3.6 V	3 V	0.1 %	Unidirectional	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	9 mA	1	Magnetoresistive	AC/DC	Ratiometric Voltage	1 %
Allegro MicroSystems CT417-HSN850DR	50 A	DC ~ 1MHz	8-SOIC	Surface Mount	40 mV/mT	300 ns	3.6 V	3 V	0.2 %	Unidirectional	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	9 mA	1	Magnetoresistive	AC/DC	Ratiometric Voltage	1 %
Allegro MicroSystems CTD417-50AC					20 mV/mT		3.6 V	3 V										Current Sensor				-50 A	50 A	Analog	CT417	Board(s)
Allegro MicroSystems CT417-HSN865MR	65 A	DC ~ 1MHz	8-SOIC	Surface Mount	15.4 LSB/mT	300 ns	3.6 V	3 V	0.2 %	Bidirectional	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	9 mA	1	Magnetoresistive	AC/DC	Ratiometric Voltage	1 %
Allegro MicroSystems CT417-HSN820MR	20 A	DC ~ 1MHz	8-SOIC	Surface Mount	50 mV/A	300 ns	3.6 V	3 V	0.1 %	Bidirectional	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	9 mA	1	Magnetoresistive	AC/DC	Ratiometric Voltage	1 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 95.22

Description

General part information

CT417 Series

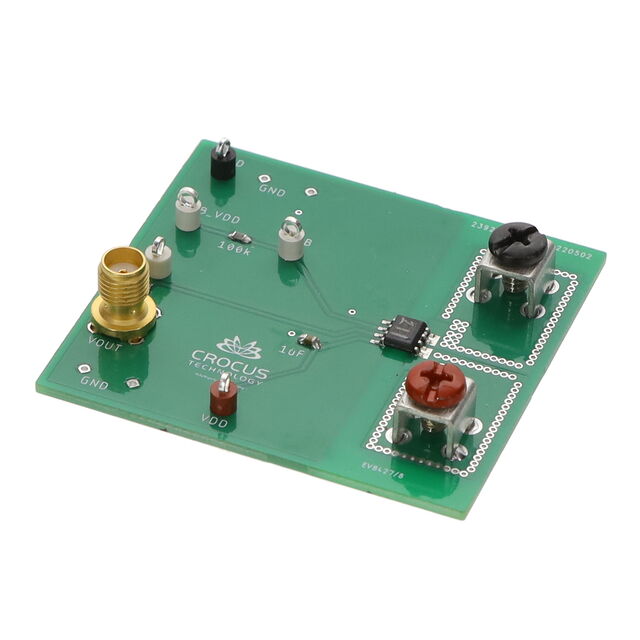

CT417 XtremeSense™ Crocus Technology Current Sensor Sensor Evaluation Board
