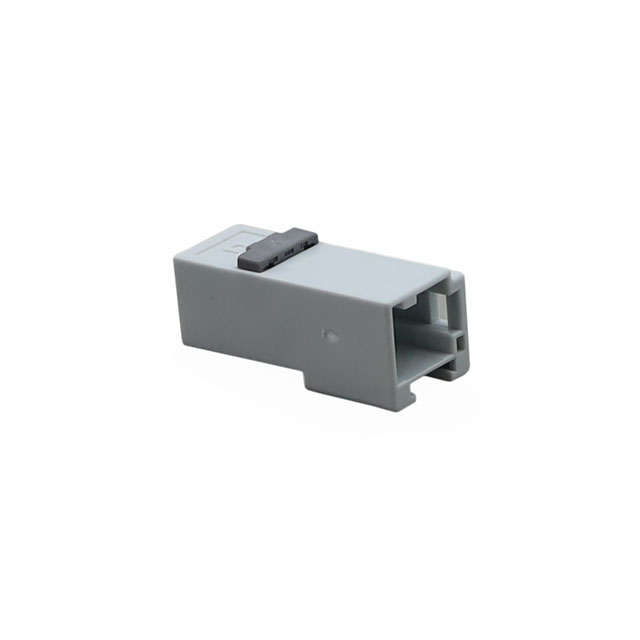

CE2G101Z00

Active

JAE Electronics

1 HOUSINGS (WIRE TO BOARD / WIRE TO WIRE ) ROHS

Search across all available documentation for this part.

Active

JAE Electronics

1 HOUSINGS (WIRE TO BOARD / WIRE TO WIRE ) ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	CE2G101Z00

Color	Gray
Connector Type	Header
Contact Termination	Crimp
Contact Type	Male Pin, Coaxial
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C

Part	Contact Termination	Number of Rows	Number of Positions	Color	Fastening Type	Insulation Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Note	Mounting Type	Contact Type
JAE Electronics CE2G101Z00	Crimp	1	1	Gray	Latch Holder	Polybutylene Terephthalate (PBT)	Header	70 °C	-30 ░C	Contacts Not Included	Free Hanging (In-Line)	Coaxial Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Rectangular Connectors - Housings Header Gray
