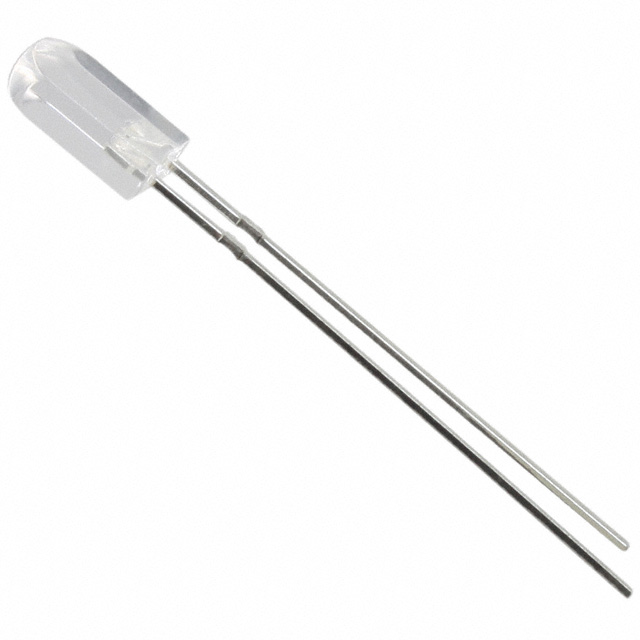

IR533C
ActiveEverlight Electronics Co Ltd
INFRARED EMITTER 940NM 35MW/SR CIRCULAR TOP MOUNT 2-PIN T-1 3/4 BAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IR533C
ActiveEverlight Electronics Co Ltd
INFRARED EMITTER 940NM 35MW/SR CIRCULAR TOP MOUNT 2-PIN T-1 3/4 BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IR533C |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 100 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | Radial |
| Radiant Intensity (Ie) Min @ If | 4 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 25 ° |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.52 | |
| 10 | $ 0.32 | |||
| 100 | $ 0.18 | |||
| 1000 | $ 0.14 | |||
| 2000 | $ 0.13 | |||
| 5000 | $ 0.12 | |||
| 10000 | $ 0.11 | |||
| 25000 | $ 0.11 | |||
Description
General part information
IR533 Series
Infrared (IR) Emitter 940nm 1.2V 100mA 4mW/sr @ 20mA 25° Radial
