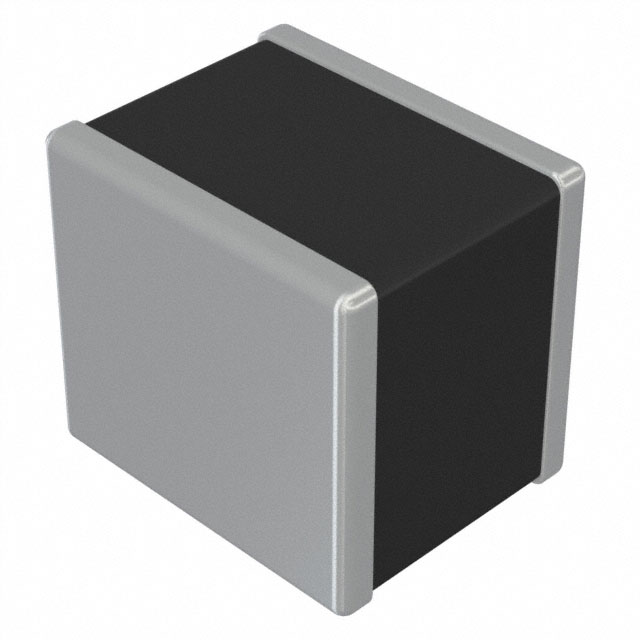

JWK107BJ475MVHT

TAIYO YUDEN

CAP ,MLCC ,0603,6.3V,X5R,4.7UF20% ROHS COMPLIANT: YES

Search across all available documentation for this part.

TAIYO YUDEN

CAP ,MLCC ,0603,6.3V,X5R,4.7UF20% ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	JWK107BJ475MVHT

Applications	Automotive, Bypass, Decoupling
Capacitance	4.7 µF
Features	Low ESL
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Package / Case	0816 Metric
Package / Case	0306
Ratings	AEC-Q200
Size / Dimension [x]	0.031 in
Size / Dimension [x]	0.8 mm
Size / Dimension [y]	1.6 mm
Size / Dimension [y]	0.063 in
Temperature Coefficient	X5R
Thickness (Max) [Max]	0.022 in
Thickness (Max) [Max]	0.55 mm
Tolerance	20 %
Voltage - Rated	6.3 V

Part	Thickness (Max) [Max]	Thickness (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Tolerance	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Mounting Type	Temperature Coefficient	Applications	Capacitance	Ratings
TAIYO YUDEN JWK107BJ475MVHT	0.022 in	0.55 mm	85 °C	-55 °C	Low ESL	20 %	0816 Metric	0306	0.031 in	1.6 mm	0.8 mm	0.063 in	6.3 V	MLCC Surface Mount	X5R	Automotive Bypass Decoupling	4.7 µF	AEC-Q200

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4.7 µF ±20% 6.3V Ceramic Capacitor X5R 0306 (0816 Metric)
