FR01FC16P-W

Active

NKK Switches

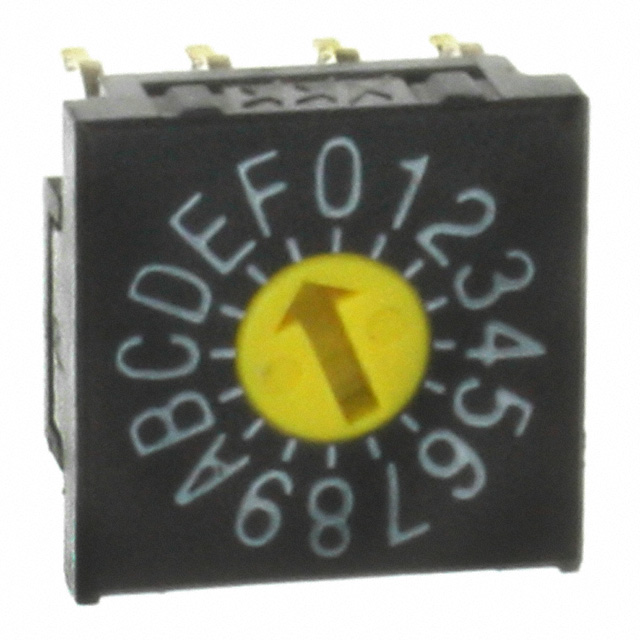

SW ROTARY DIP HEX COMP 0.1A 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDR, FR01 Extra Character Datasheet

FR01FC16P-W

Active

NKK Switches

SW ROTARY DIP HEX COMP 0.1A 5V

Deep-Dive with AI

DocumentsDR, FR01 Extra Character Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FR01FC16P-W

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	Hexadecimal Complement
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Height Above Board	0.15 "
Height Above Board	3.81 mm
Length	10 mm
Length	0.394 in
Mechanical Life	10000 Steps
Mounting Type	Through Hole
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	5 V
Washable	True

FR01FC16 Series

Part	Circuit	Termination Style	Body Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Actuator Type	Electrical Life	Length	Length	Mechanical Life	Height Above Board	Height Above Board	Voltage Rating	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Contact Finish	Number of Positions	Mounting Type	Height Above Board [z]	Height Above Board [z]
NKK Switches FR01FC16P	Hexadecimal Complement	PC Pin	Polyamide (PA) Nylon Glass Filled	Copper Alloy	-25 °C	85 °C	100 mA	Rotary for Tool	10000 Cycles	10 mm	0.394 in	10000 Steps	0.15 "	3.81 mm	5 V	Flush Recessed	0.1 in	Full	2.54 mm	Gold	16	Through Hole
NKK Switches FR01FC16H-06XL	Hexadecimal Complement	PC Pin	Polyamide (PA) Nylon Glass Filled	Copper Alloy	-25 °C	85 °C	100 mA	Rotary for Tool	10000 Cycles	10 mm	0.394 in	10000 Steps			5 V	Flush Recessed	0.1 in	Full	2.54 mm	Gold	16	Through Hole Right Angle	10 mm	0.394 in
NKK Switches FR01FC16P-W	Hexadecimal Complement	PC Pin	Polyamide (PA) Nylon Glass Filled	Copper Alloy	-25 °C	85 °C	100 mA	Rotary for Tool	10000 Cycles	10 mm	0.394 in	10000 Steps	0.15 "	3.81 mm	5 V	Flush Recessed	0.1 in	Full	2.54 mm	Gold	16	Through Hole
NKK Switches FR01FC16H-06XL-S	Hexadecimal Complement	PC Pin	Polyamide (PA) Nylon Glass Filled	Copper Alloy	-25 °C	85 °C	100 mA	Rotary for Tool	10000 Cycles	10 mm	0.394 in	10000 Steps			5 V	Flush Recessed	0.1 in	Full	2.54 mm	Gold	16	Through Hole Right Angle	10 mm	0.394 in
NKK Switches FR01FC16H	Hexadecimal Complement	PC Pin	Polyamide (PA) Nylon Glass Filled	Copper Alloy	-25 °C	85 °C	100 mA	Rotary for Tool	10000 Cycles	10 mm	0.394 in	10000 Steps			5 V	Flush Recessed	0.1 in	Full	2.54 mm	Gold	16	Through Hole Right Angle	10 mm	0.394 in
