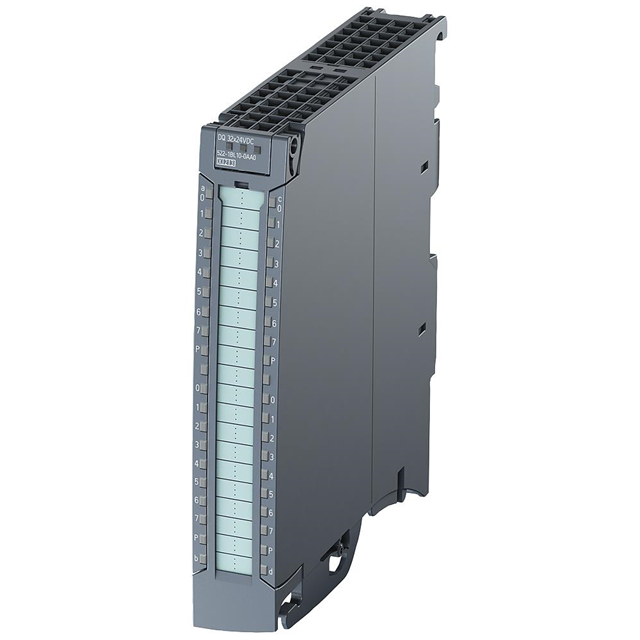

6ES75221BL100AA0

Active

Siemens

DIGITAL OUTPUT,DQ 32X24VDC/0.5A

Search across all available documentation for this part.

Active

Siemens

DIGITAL OUTPUT,DQ 32X24VDC/0.5A

Technical Specifications

Parameters and characteristics for this part

Specification	6ES75221BL100AA0

For Use With/Related Products	SIMATIC S7-1500
Mounting Type	DIN Rail
Number of Outputs and Type [custom]	32
Number of Outputs and Type [custom]	Solid State
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Termination Style	Screw Terminal
Type	Output Module
Voltage - Supply [Max]	28.8 VDC
Voltage - Supply [Min]	19.2 V

Part	For Use With/Related Products	Type	Termination Style	Mounting Type	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]
Siemens 6ES75221BL100AA0	SIMATIC S7-1500	Output Module	Screw Terminal	DIN Rail	32	Solid State	28.8 VDC	19.2 V	-30 ░C	60 °C
Siemens 6ES75221BP500AA0	SIMATIC S7-1500	Output Module	Screw Terminal	DIN Rail			28.8 VDC	19.2 V	-30 ░C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Output Module DIN Rail 19.2 ~ 28.8VDC
