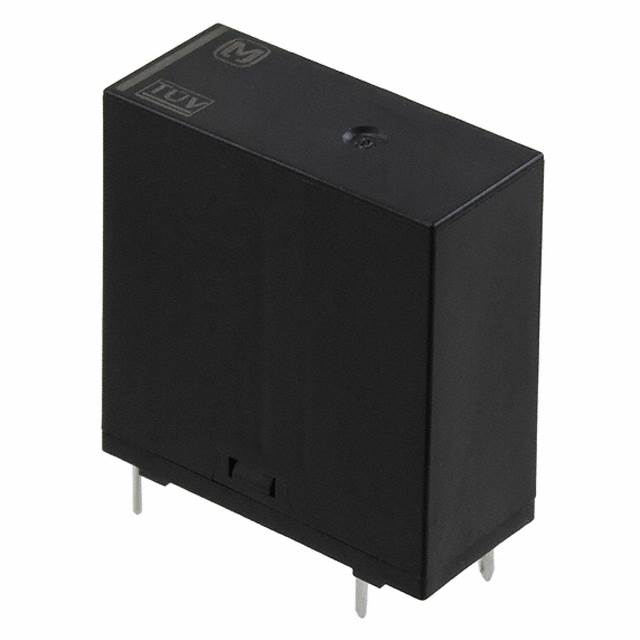

LKG1AF-9V-10-1

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 10A 9V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsStandards Chart How to Read Date Codes +1

LKG1AF-9V-10-1

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 10A 9V

Deep-Dive with AI

DocumentsStandards Chart How to Read Date Codes +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LKG1AF-9V-10-1

Approval Agency	cURus, TUV
Coil Current	58.8 mA
Coil Resistance	153 Ohms
Coil Type	Non Latching
Coil Voltage	9 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	10 A
Load - Max Switching [Max]	2770 VA
Mounting Type	Through Hole
Must Operate Voltage	6.75 VDC
Must Release Voltage	0.9 VDC
Operate Time	15 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage [Max]	277 VAC
Termination Style	PC Pin

LKG1A Series

Part	Switching Voltage [Max]	Load - Max Switching	Coil Current	Must Operate Voltage	Coil Resistance	Operate Time	Coil Voltage	Mounting Type	Release Time	Approval Agency	Must Release Voltage	Contact Rating (Current)	Coil Type	Contact Form	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Relay Type	Seal Rating	Contact Material	Load - Max Switching [Max]
Panasonic Electric Works LKG1AF-9V-16-1	277 VAC	4432 VA	58.8 mA	6.75 VDC	153 Ohms	15 ms	9 VDC	Through Hole	20 ms	cURus TUV	0.9 VDC	16 A	Non Latching	SPST-NO (1 Form A)	PC Pin	-40 °C	70 °C	General Purpose	Sealed - Flux Protection	Silver Tin Oxide (AgSnO)
Panasonic Electric Works LKG1AF-24V-16	277 VAC	4432 VA	22.1 mA	18 VDC	1.09 kOhms	15 ms	24 VDC	Through Hole	20 ms	cURus TUV	2.4 VDC	16 A	Non Latching	SPST-NO (1 Form A)	PC Pin	-40 °C	70 °C	General Purpose	Sealed - Flux Protection	Silver Tin Oxide (AgSnO)
Panasonic Electric Works LKG1AF-24V-10-1	277 VAC		22.1 mA	18 VDC	1.087 kOhms	15 ms	24 VDC	Through Hole	20 ms	cURus TUV	2.4 VDC	10 A	Non Latching	SPST-NO (1 Form A)	PC Pin	-40 °C	70 °C	General Purpose	Sealed - Flux Protection	Silver Tin Oxide (AgSnO)	2770 VA
Panasonic Electric Works LKG1AF-12V-10-1	277 VAC		44.2 mA	9 VDC	272 Ohms	15 ms	12 VDC	Through Hole	20 ms	cURus TUV	1.2 VDC	10 A	Non Latching	SPST-NO (1 Form A)	PC Pin	-40 °C	70 °C	General Purpose	Sealed - Flux Protection	Silver Tin Oxide (AgSnO)	2770 VA
Panasonic Electric Works LKG1AF-9V-10-1	277 VAC		58.8 mA	6.75 VDC	153 Ohms	15 ms	9 VDC	Through Hole	20 ms	cURus TUV	0.9 VDC	10 A	Non Latching	SPST-NO (1 Form A)	PC Pin	-40 °C	70 °C	General Purpose	Sealed - Flux Protection	Silver Tin Oxide (AgSnO)	2770 VA
