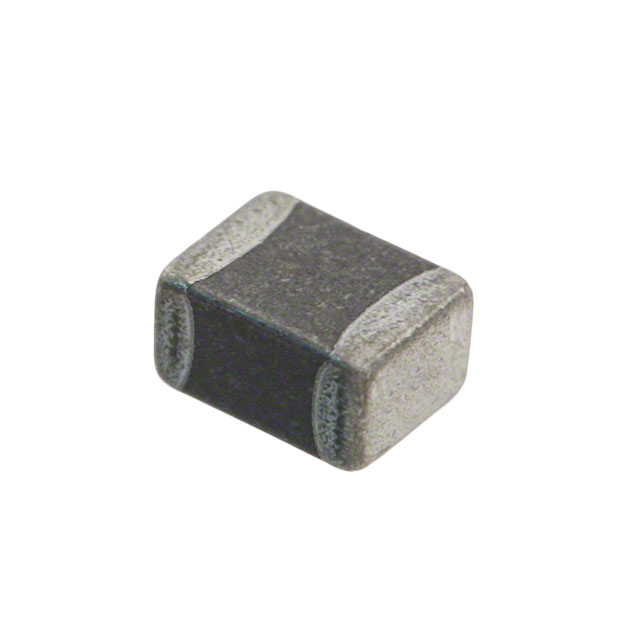

NFZ2MSM301SN10L
NRNDMurata Power Solutions Inc.
FERRITE BEAD 300 OHM 0806 1LN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NFZ2MSM301SN10L
NRNDMurata Power Solutions Inc.
FERRITE BEAD 300 OHM 0806 1LN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NFZ2MSM301SN10L |
|---|---|
| Current Rating (Max) [Max] | 3.1 A |
| DC Resistance (DCR) (Max) [Max] | 30 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] [z] | 1 mm |
| Height (Max) [Max] [z] | 0.039 in |
| Impedance @ Frequency | 300 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0806 (2016 Metric) |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.43 | |
| 10 | $ 0.30 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.43 | ||
| 10 | $ 0.30 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 3000 | $ 0.13 | ||
Description
General part information
NFZ2MSM Series
300 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0806 (2016 Metric) 3.1A 30mOhm
