TC73X-1-102E
ObsoleteBourns Inc.

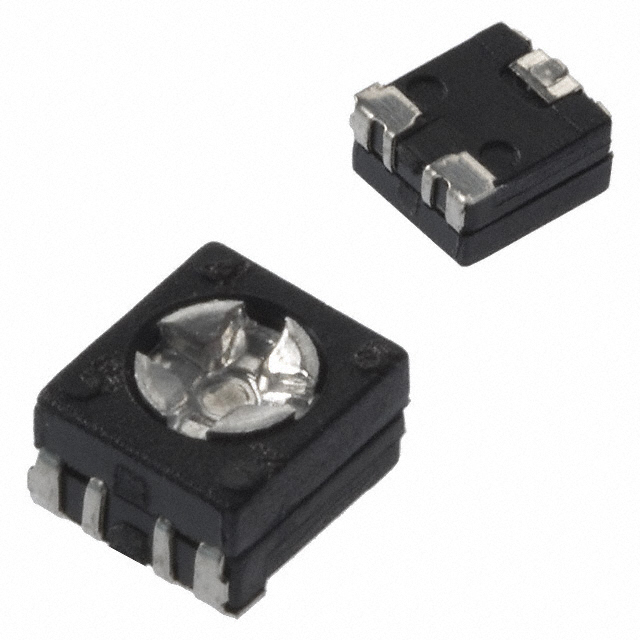

TRIMMER 1K OHM 0.05W J LEAD TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC73X-1-102E
ObsoleteBourns Inc.
TRIMMER 1K OHM 0.05W J LEAD TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TC73X-1-102E |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 1 |
| Power (Watts) | 0.05 W |
| Power (Watts) | 50 mW |
| Resistance | 1000 Ohms |
| Resistive Material | Carbon |
| Size / Dimension [x] | 3.6 mm |
| Size / Dimension [x] | 0.142 in |
| Size / Dimension [y] | 3.1 mm |
| Size / Dimension [y] | 0.122 in |
| Temperature Coefficient | 250 ppm/°C |
| Termination Style | J Lead |
| Tolerance | 30 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TC73X Series
1 kOhms 0.05W, 1/20W J Lead Surface Mount Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
