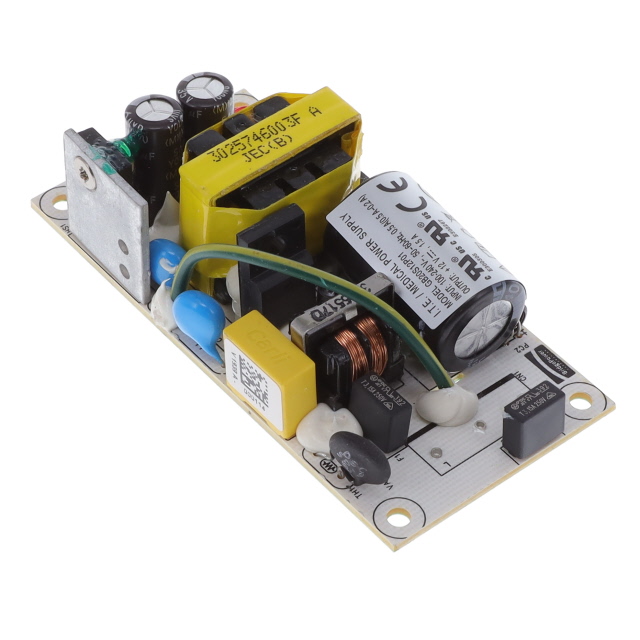

GB20S12P01

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 12V 18W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 12V 18W

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Output 1	Minimum Load Required	Number of Outputs	Mounting Type	Voltage - Isolation	Type	Approval Agency	Current - Output 1	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Features	Standard Number
SL POWER / Advanced Energy GB20S12K01	40.6 mm	1.6 "	3.38 in	85.9 mm	25.4 mm	1 "	-25 °C	70 °C	88 %	12 V		1	Chassis Mount	4000 V	Open Frame	CE cURus UL	1.5 A	ITE (Commercial) Medical	240 VAC	100 VAC	Universal Input
SL POWER / Advanced Energy GB20S12P01	39.9 mm	1.57 "	3.23 in	82 mm	20.5 mm	0.81 in	-25 °C	70 °C	88 %	12 V		1	Chassis Mount	4000 V	Open Frame	CE cURus DEMKO	1.5 A	ITE (Commercial) Medical	264 VAC	90 VAC	Universal Input	60601-1 62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9.44

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
