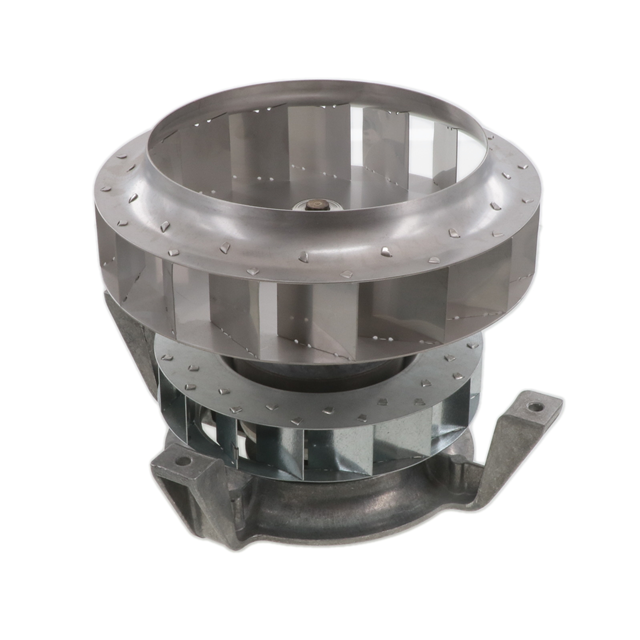

R2E225-AG01-21

Active

ebm-papst Inc.

MOTORIZED IMPELLER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R2E225-AG01-21

Active

ebm-papst Inc.

MOTORIZED IMPELLER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R2E225-AG01-21

Approval Agency	UL, CSA, CE
Bearing Type	Ball
Current Rating (Amps)	1.25 A
Fan Type	Motorized Impellers
Features	Capacitor, Thermal Overload Protector (TOP)
Material - Blade	Steel
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	285 W
RPM	2800 RPM
Size / Dimension [diameter]	270 mm
Termination	3 Wire Leads with Splice Terminals
Voltage - Rated	230 VAC
Width [y]	186 mm

R2E225 Series

Part	Bearing Type	Material - Blade	Air Flow	Air Flow	Power (Watts)	Size / Dimension [diameter]	Width [y]	Noise	Fan Type	Voltage - Rated	Ingress Protection	Approval Agency	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	RPM	Termination	Features	Weight	Weight	Voltage Range [Max]	Voltage Range [Min]	Width [x]
ebm-papst Inc. R2E225-BE51-13	Ball	Polyamide (PA66) Nylon 6/6	21.17 m³/min	756 CFM	185 W	225 mm	135 mm	75 dB(A)	Motorized Impellers	115 VAC
ebm-papst Inc. R2E225-BD92-09	Ball	Polyamide (PA6) Nylon 6 Fiberglass Reinforced			200 W	225 mm	99 mm		Motorized Impellers	230 VAC	IP44	CCC EAC	55 °C	55 °C	-25 °C	-25 °C	880 mA	2950 RPM	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)
ebm-papst Inc. R2E225-RA40-21	Ball	Fiberglass Reinforced Nylon Polyamide (PA)	22.08 m³/min	788.7 CFM	225 W	225 mm	99 mm	76 dB(A)	Motorized Impellers	115 VAC	IP44	UL	40 °C	40 °C	-25 °C	-25 °C		2700 RPM	4 Wire Leads		2.3 kg	5 lbs	130 VAC	100 VAC
ebm-papst Inc. R2E225-BE47-19	Ball	Nylon Polyamide (PA)			185 W	225 mm			Motorized Impellers	230 VAC	IP44	CE CSA UL	55 °C	55 °C	-25 °C	-25 °C	0.81 A	3000 RPM	3 Wire Leads with Splice Terminals 4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)					107 mm
ebm-papst Inc. R2E225-AG01-21	Ball	Steel			285 W	270 mm	186 mm		Motorized Impellers	230 VAC		CE CSA UL	50 °C	50 °C	-25 °C	-25 °C	1.25 A	2800 RPM	3 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)
ebm-papst Inc. R2E225-AX52-20	Ball	Nylon Polyamide (PA)			165 W	225 mm	75.3 mm		Motorized Impellers	230 VAC	IP44	CCC CSA UL	40 °C	40 °C	-25 °C	-25 °C	0.72 A	3000 RPM	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)
ebm-papst Inc. R2E225-BD40-28	Ball	Polyamide (PA6) Nylon 6			195 W	225 mm	99 mm		Motorized Impellers	115 VAC	IP44	CCC CE CSA UL	60 °C			-25 °C	1.7 A		4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)
ebm-papst Inc. R2E225-BD92-37	Ball	Polyamide (PA6) Nylon 6 Fiberglass Reinforced			200 W	225 mm	99 mm		Motorized Impellers	230 VAC	IP44	CCC CE CSA EAC	55 °C	55 °C	-25 °C	-25 °C	880 mA	2950 RPM	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)
ebm-papst Inc. R2E225-BE51-09	Ball	Nylon Polyamide (PA)	21.17 m³/min	756 CFM	185 W	225 mm		75 dB(A)	Motorized Impellers	115 VAC		CSA UL							4 Wire Leads		2.7 kg	6 lbs			107 mm
ebm-papst Inc. R2E225-BE47-09	Ball	Nylon Polyamide (PA)	21.17 m³/min	756 CFM	185 W	225 mm	88 mm	75 dB(A)	Motorized Impellers	230 VAC	IP44	CSA UL	80 C	80 °C	-40 °C	-40 °C	800 mA	3000 RPM	2 Wire Leads		2.7 kg	6 lbs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 423.59
		10	$ 390.78
		25	$ 384.81

Description

General part information

R2E225 Series

Fan Motorized Impellers 230VAC Round - 270mm Dia Ball 3 Wire Leads with Splice Terminals
