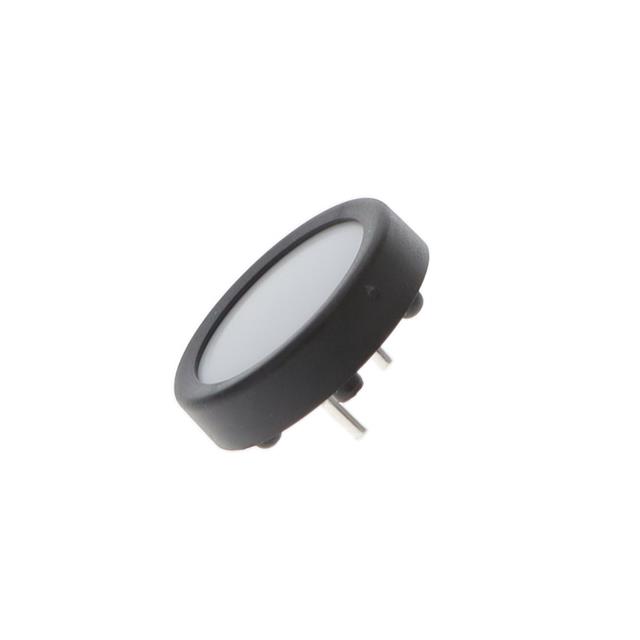

1241.1110.7098

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 125MA 48V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 125MA 48V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.1110.7098

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	White
Current Rating (Amps)	125 mA
Electrical Life	1000000 Cycles
Features	Tactile Feedback
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - DC	48 V

Part	Termination Style	Ingress Protection	Mechanical Life	Actuator Type	Switch Function	Type	Circuit	Current Rating (Amps)	Electrical Life	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating - DC	Features	Actuator Marking
SCHURTER Inc. 1241.1110.7098	PC Pin	IP65 - Dust Tight Water Resistant	1000000 Cycles	Button Flush Round	Off-Mom	Standard	SPST-NO	125 mA	1000000 Cycles	White	-25 °C	60 °C	Through Hole	48 V	Tactile Feedback	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Through Hole
