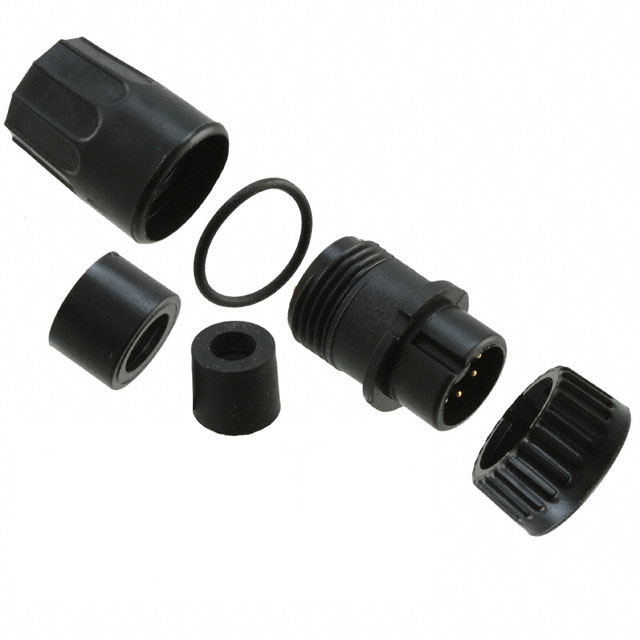

3282-6PG-330

Active

Conxall/Switchcraft

CONN PLUG MALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Multi-Con-X Connectors

3282-6PG-330

Active

Conxall/Switchcraft

CONN PLUG MALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet Multi-Con-X Connectors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3282-6PG-330

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.32 in
Cable Opening [Max] [diameter]	8.13 mm
Cable Opening [Min] [diameter]	7.62 mm
Cable Opening [Min] [diameter]	0.3 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5.6 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

3282-6P Series

Part	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Contact Material	Features	Fastening Type	Orientation	Shielding	Primary Material	Color	Voltage Rating	Ingress Protection	Number of Positions	Mounting Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Backshell Material, Plating	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 3282-6PG-521	5.33 mm	5.84 mm	0.21 in	0.23 in	Brass	Backshell Cable Clamp	Bayonet Lock	Keyed	Unshielded	Plastic	Black	600 V	Weathertight	6	Free Hanging (In-Line)	Male Pins Plug	-40 °C	115 °C	5.6 A	Nylon Polyamide (PA)	Gold
Conxall/Switchcraft 3282-6PG-528	7.11 mm	7.37 mm	0.28 in	0.29 in	Brass	Backshell Cable Clamp	Bayonet Lock	Keyed	Unshielded	Plastic	Black	600 V	Weathertight	6	Free Hanging (In-Line)	Male Pins Plug	-40 °C	115 °C	5.6 A	Nylon Polyamide (PA)	Gold
Conxall/Switchcraft 3282-6PG-315					Brass	Backshell	Bayonet Lock	Keyed	Unshielded	Plastic	Black	600 V	Weathertight	6	Free Hanging (In-Line)	Male Pins Plug	-40 °C	115 °C	5.6 A	Nylon Polyamide (PA)	Gold	0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 3282-6PG-324	6.1 mm	6.86 mm	0.24 in	0.27 in	Brass	Backshell	Bayonet Lock	Keyed	Unshielded	Plastic	Black	600 V	Weathertight	6	Free Hanging (In-Line)	Male Pins Plug	-40 °C	115 °C	5.6 A	Nylon Polyamide (PA)	Gold
Conxall/Switchcraft 3282-6PG-330	7.62 mm		0.3 in	0.32 in	Brass	Backshell	Bayonet Lock	Keyed	Unshielded	Plastic	Black	600 V	Weathertight	6	Free Hanging (In-Line)	Male Pins Plug	-40 °C	115 °C	5.6 A	Nylon Polyamide (PA)	Gold			8.13 mm
Conxall/Switchcraft 3282-6PG-515					Brass	Backshell Cable Clamp	Bayonet Lock	Keyed	Unshielded	Plastic	Black	600 V	Weathertight	6	Free Hanging (In-Line)	Male Pins Plug	-40 °C	115 °C	5.6 A	Nylon Polyamide (PA)	Gold	0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 3282-6PG-318					Brass	Backshell	Bayonet Lock	Keyed	Unshielded	Plastic	Black	600 V	Weathertight	6	Free Hanging (In-Line)	Male Pins Plug	-40 °C	115 °C	5.6 A	Nylon Polyamide (PA)	Gold				4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3282-6PG-524	6.1 mm	6.86 mm	0.24 in	0.27 in	Brass	Backshell Cable Clamp	Bayonet Lock	Keyed	Unshielded	Plastic	Black	600 V	Weathertight	6	Free Hanging (In-Line)	Male Pins Plug	-40 °C	115 °C	5.6 A	Nylon Polyamide (PA)	Gold
Conxall/Switchcraft 3282-6PG-530	7.62 mm		0.3 in	0.32 in	Brass	Backshell Cable Clamp	Bayonet Lock	Keyed	Unshielded	Plastic	Black	600 V	Weathertight	6	Free Hanging (In-Line)	Male Pins Plug	-40 °C	115 °C	5.6 A	Nylon Polyamide (PA)	Gold			8.13 mm
Conxall/Switchcraft 3282-6PG-3DC					Brass	Backshell	Bayonet Lock	Keyed	Unshielded	Plastic	Black	600 V	Weathertight	6	Free Hanging (In-Line)	Male Pins Plug	-40 °C	115 °C	5.6 A	Nylon Polyamide (PA)	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.86
		10	$ 9.62
		25	$ 9.25
		50	$ 8.88
		100	$ 8.69

Description

General part information

3282-6P Series

6 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Multi-Con-X Connectors

Datasheet
