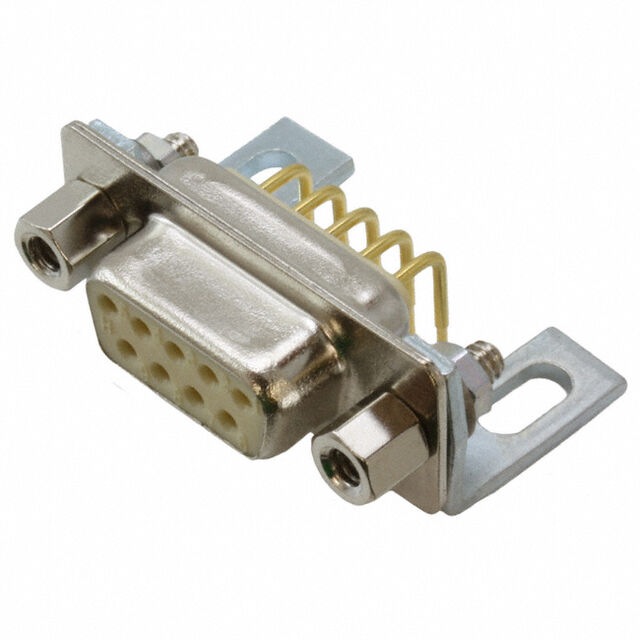

773-E09-213R141

Active

MH Connectors

IP67 9 . .318" / ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

IP67 9 . .318" / ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	773-E09-213R141

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	White
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

Part	Termination	Contact Type	Contact Material	Number of Positions	Connector Type	Dielectric Material	Mounting Type	Color	Connector Style	Shell Material, Finish	Features	Current Rating (Amps)	Backset Spacing	Backset Spacing	Material Flammability Rating	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Contact Finish Thickness	Flange Feature	Ingress Protection
MH Connectors 773-E09-213R141	Solder	Signal	Brass	9	Receptacle Female Sockets	Polyamide (PA6T) Nylon 6T	Panel Mount Right Angle Through Hole	White	D-Sub	Nickel Plated Steel	Mounting Brackets	5 A	0.283 in	7.2 mm	UL94 V-0	2	DE E	1	Gold	Flash	Female Screwlock (4-40) Mating Side	IP67 - Dust Tight Waterproof
MH Connectors 773-E09-113R461	Solder	Signal	Brass	9	Male Pins Plug	Polyamide (PA6T) Nylon 6T	Panel Mount Right Angle Through Hole	White	D-Sub	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets	5 A	0.283 in	7.2 mm	UL94 V-0	2	DE E	1	Gold	Flash	Housing/Shell (4-40)	IP67 - Dust Tight Waterproof
MH Connectors 773-E09-213R001	Solder	Signal	Brass	9	Receptacle Female Sockets	Polyamide (PA6T) Nylon 6T	Panel Mount Right Angle Through Hole	White	D-Sub	Nickel Plated Steel		5 A	0.283 in	7.2 mm	UL94 V-0	2	DE E	1	Gold	Flash	Housing/Shell (Unthreaded)	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Receptacle, Female Sockets Connector
