Q-2X012000R.75M

Active

Amphenol Custom Cable

COAX CBL SMA TO MCX 29.5"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO MCX 29.5"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2X012000R.75M

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MCX Socket
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316 DS
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	SMA to MCX

Part	2nd Connector Mounting Type	Style	Color	2nd Contact Gender	Connector Impedance	Length	Length	1st Connector Mounting Type	1st Contact Gender	Overall Impedance	2nd Connector	1st Connector	1st Connector Mounting Feature	Cable Type	2nd Connector Mounting Feature	Cable Impedance	Frequency - Max [Max]	Features
Amphenol Custom Cable Q-2X012000R.75M	Panel Mount	SMA to MCX	Copper	Female	50 Ohms	29.53 "	750 mm	Panel Mount	Female	50 Ohms	MCX Socket	SMA Jack	Bulkhead - Front Side Nut	RG-316 DS	Bulkhead - Front Side Nut	50 Ohms	3 GHz	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

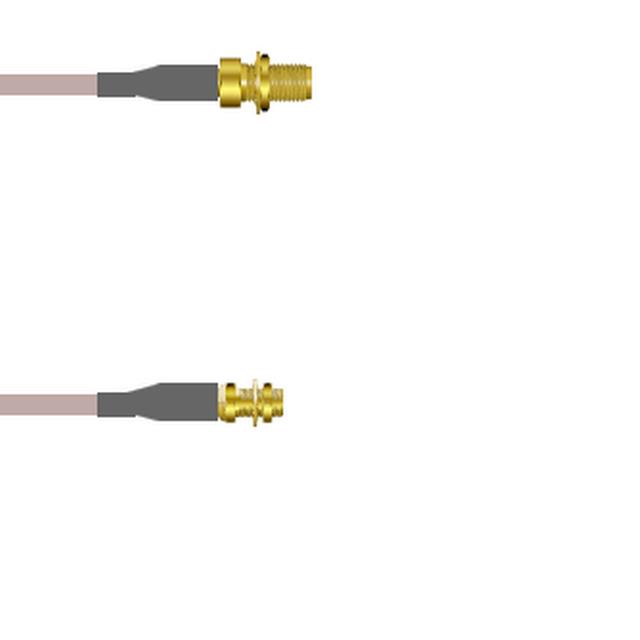

Cable Assembly Coaxial SMA to MCX RG-316 DS 29.53" (750.00mm)

Technical documentation and resources

No documents available
