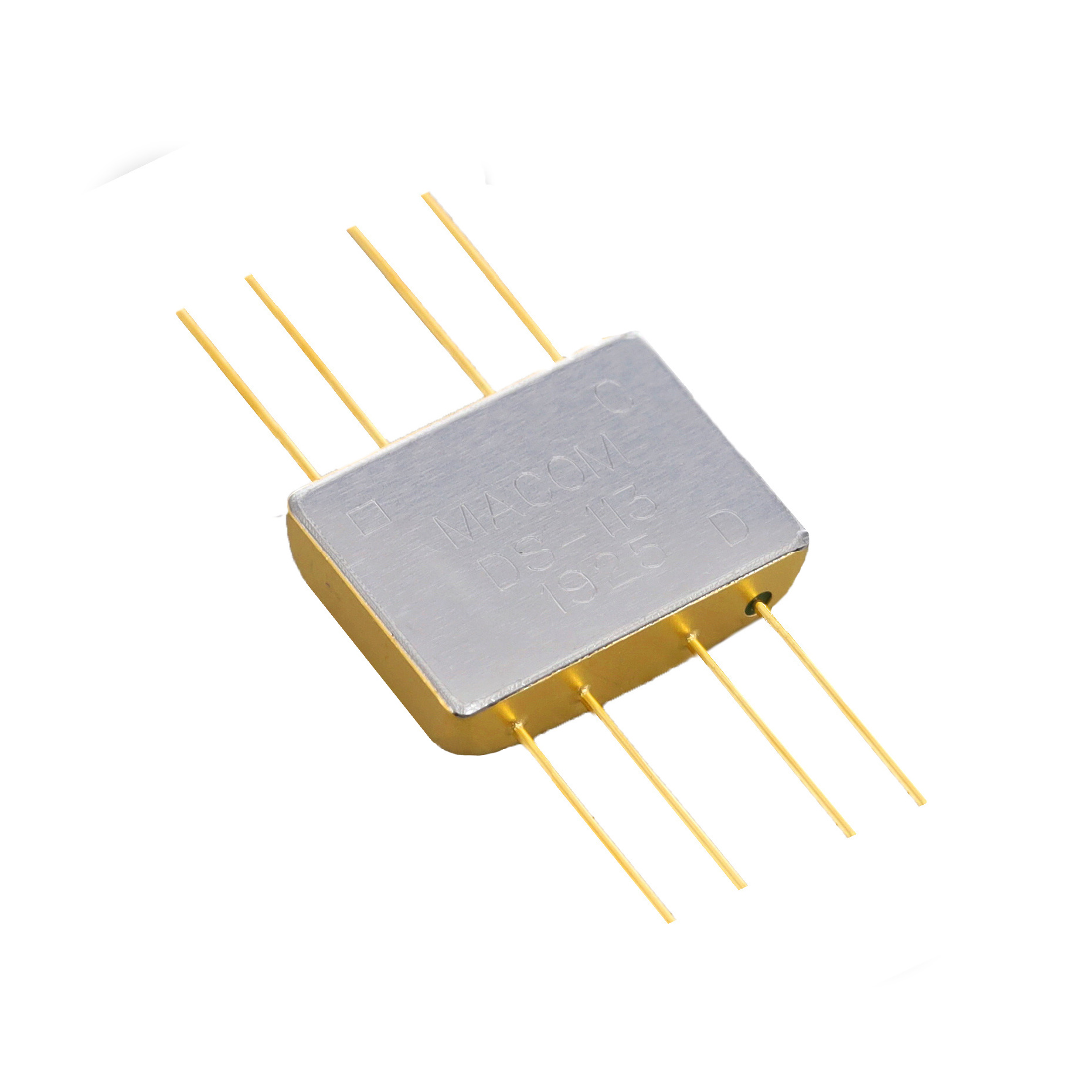

DS-113-PIN
ActiveMACOM Technology Solutions
POWER DIVIDER,2WAY,25DB INSERTIO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS-113-PIN
ActiveMACOM Technology Solutions
POWER DIVIDER,2WAY,25DB INSERTIO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DS-113-PIN |
|---|---|
| Frequency [Max] | 400 MHz |
| Frequency [Min] | 400 kHz |
| Insertion Loss | 0.75 dB |
| Package / Case | FP-2 |
| Size / Dimension [x] | 0.508 in |
| Size / Dimension [x] | 12.9 mm |
| Size / Dimension [y] | 9.8 mm |
| Size / Dimension [y] | 0.386 " |
| Size / Dimension [z] | 3.8 mm |
| Size / Dimension [z] | 0.15 " |
| Specifications [Max] | 1 °, 1.5 VSWR |
| Specifications [Min] | 25 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 131.69 | |
Description
General part information
DS-113 Series
RF Power Divider 400 kHz ~ 400 MHz Isolation (Min) 25dB, 1.5 VSWR (Max), 1° Imbalance (Max) FP-2
