895-034-523-404
ActiveEDAC Inc.

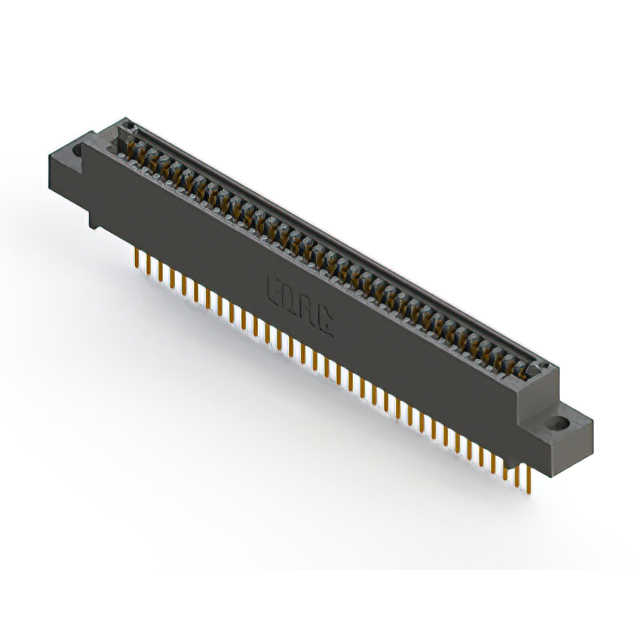

CONN EDGE SINGLE FML 34POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-034-523-404
ActiveEDAC Inc.
CONN EDGE SINGLE FML 34POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-034-523-404 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 34 |
| Number of Positions/Bay/Row [custom] | 34 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
895-034 Series
...
| Part | Number of Positions/Bay/Row [custom] | Number of Rows | Card Type | Read Out | Number of Positions | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Finish | Gender | Termination Rows | Pitch [x] | Pitch [x] | Contact Type | Mounting Type | Termination | Flange Feature | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 34 | 1 | Non Specified - Single Edge | Single | 34 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | Gold | Female | 1 | 2.54 mm | 0.1 in | Cantilever | Through Hole | Solder | Flush Mount M3 Threaded Insert Top Opening | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | ||||
EDAC Inc. | 2 | Non Specified - Dual Edge | Dual | 34 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | Gold | Female | 2 | 2.54 mm | 0.1 in | Cantilever | Through Hole Right Angle | Solder | Top Mount Opening Unthreaded | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 0.156 in | 3.96 mm | |||
EDAC Inc. | 2 | Non Specified - Dual Edge | Dual | 34 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | Gold | Female | 2 | 2.54 mm | 0.1 in | Cantilever | Through Hole Right Angle | Solder | Top Mount Opening Unthreaded | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 0.156 in | 3.96 mm | |||
EDAC Inc. | 34 | 1 | Non Specified - Single Edge | Single | 34 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | Gold | Female | 1 | 2.54 mm | 0.1 in | Cantilever | Through Hole | Solder | Top Mount Opening Unthreaded | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 0.156 in | 3.96 mm | ||
EDAC Inc. | 2 | Non Specified - Dual Edge | Dual | 34 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | Gold | Female | 2 | 2.54 mm | 0.1 in | Cantilever | Through Hole Right Angle | Solder | M3 Threaded Insert Top Mount Opening | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | |||||
EDAC Inc. | 2 | Non Specified - Dual Edge | Dual | 34 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | Gold | Female | 2 | 2.54 mm | 0.1 in | Cantilever | Through Hole Right Angle | Solder | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 34 | 1 | Non Specified - Single Edge | Single | 34 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | Gold | Female | 1 | 2.54 mm | 0.1 in | Cantilever | Through Hole | Solder | Floating Bobbin Flush Mount | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 0.116 in | 2.95 mm | ||
EDAC Inc. | 34 | 1 | Non Specified - Single Edge | Single | 34 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | Gold | Female | 1 | 2.54 mm | 0.1 in | Cantilever | Through Hole Right Angle | Solder | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 3.25 mm | 0.128 in | |||
EDAC Inc. | 34 | 1 | Non Specified - Single Edge | Single | 34 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | Gold | Female | 1 | 2.54 mm | 0.1 in | Cantilever | Through Hole Right Angle | Solder | M3 Threaded Insert Top Mount Opening | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | ||||
EDAC Inc. | 34 | 1 | Non Specified - Single Edge | Single | 34 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | Gold | Female | 1 | 2.54 mm | 0.1 in | Cantilever | Through Hole Right Angle | Solder | Top Mount Opening Unthreaded | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 0.156 in | 3.96 mm |
