7-345-1PP-BA
ActiveTusonix a Subsidiary of CTS Electronic Components

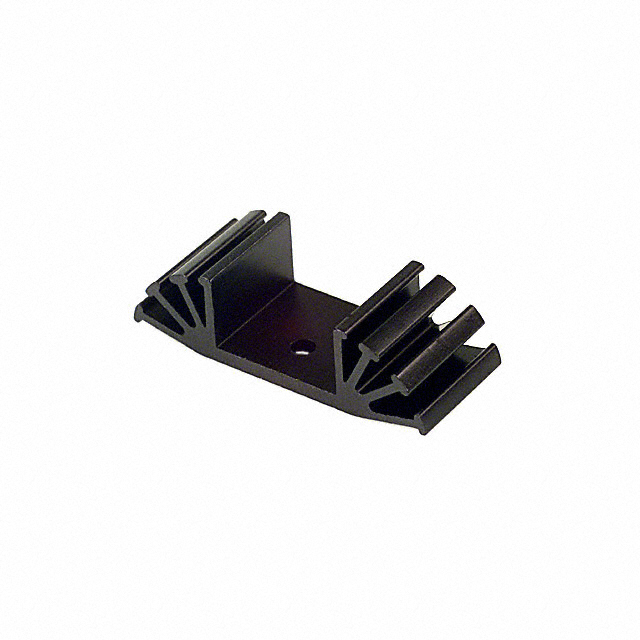

HEATSINK PWR HORZ BLACK TO-220
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7-345-1PP-BA
ActiveTusonix a Subsidiary of CTS Electronic Components
HEATSINK PWR HORZ BLACK TO-220
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7-345-1PP-BA |
|---|---|
| Attachment Method | Bolt On |
| Fin Height | 0.553 " |
| Fin Height | 14.05 mm |
| Length | 19.05 mm |
| Length | 0.75 in |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Power Dissipation @ Temperature Rise | 6 W |
| Shape | Rectangular, Fins |
| Thermal Resistance @ Natural | 9 °C/W |
| Type | Board Level |
| Width [x] | 2 in |
| Width [x] | 50.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.07 | |
| 10 | $ 2.72 | |||
| 25 | $ 2.60 | |||
| 50 | $ 2.50 | |||
| 100 | $ 2.42 | |||
| 250 | $ 2.30 | |||
| 500 | $ 2.22 | |||
| 1000 | $ 2.14 | |||
| 5000 | $ 1.97 | |||
Description
General part information
7-345-1 Series
Heat Sink TO-220 Aluminum 6.0W @ 50°C Board Level
