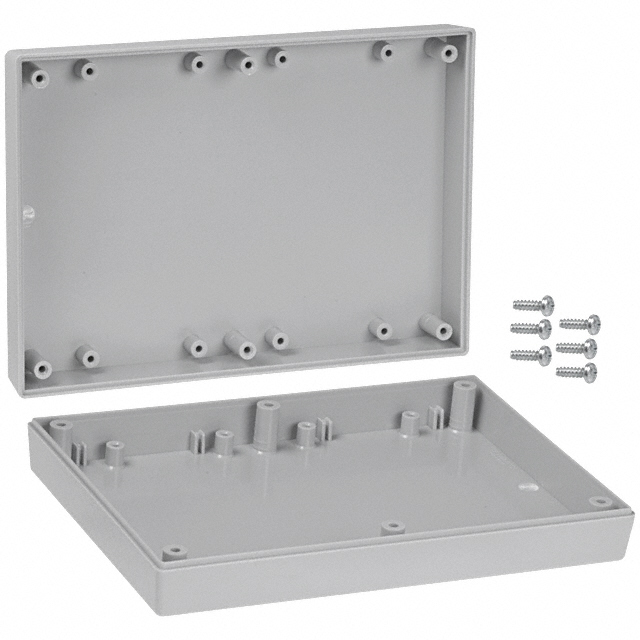

171,GY

Active

Serpac

BOX ABS GRAY 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	171,GY

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	38.1 mm
Height [z]	1.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.4 lb
Weight	181.44 g

Part	Material	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Thickness	Thickness	Color	Weight	Weight	Design	Features	Container Type	Ratings	Material Flammability Rating	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
Serpac 171,GY	Plastic ABS	33.6 in²	217 cm²	38.1 mm	1.5 in	2.54 mm	0.1 in	Gray	0.4 lb	181.44 g	Hand Held Split Sides	PCB Supports	Box	IP40 NEMA 1	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in
Serpac 171,BK	Plastic ABS	33.6 in²	217 cm²	38.1 mm	1.5 in	2.54 mm	0.1 in	Black	0.4 lb	181.44 g	Hand Held Split Sides	PCB Supports	Box	IP40 NEMA 1	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in
Serpac 171,AL	Plastic ABS	33.6 in²	217 cm²	38.1 mm	1.5 in	2.54 mm	0.1 in	Almond	0.4 lb	181.44 g	Hand Held Split Sides	PCB Supports	Box	IP40 NEMA 1	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 6.880" L x 4.880" W (174.75mm x 123.95mm) X 1.500" (38.10mm)
