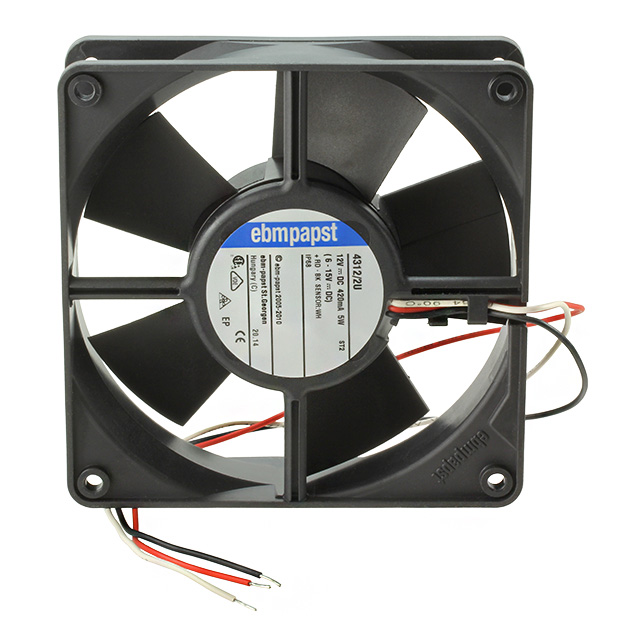

4312/2U

Active

ebm-papst Inc.

DC FANS TUBEAXIAL, 119X32MM, 12V, 100.1CFM, 5W, 45DB, 2800RPM, BALL, SPEED SIGNAL, IP68

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4312/2U

Active

ebm-papst Inc.

DC FANS TUBEAXIAL, 119X32MM, 12V, 100.1CFM, 5W, 45DB, 2800RPM, BALL, SPEED SIGNAL, IP68

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4312/2U

Air Flow	100.1 CFM
Air Flow	2.8 m³/min
Approval Agency	UL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	45 dB(A)
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	5 W
RPM	2800 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	15 V
Voltage Range [Min]	6 VDC
Weight	259.91 g
Weight	0.573 lb
Width [y]	32 mm

4300U Series

DC Fans Tubeaxial, 119x32mm, 12V, 100.1CFM, 5W, 45dB, 2800RPM, Ball, Speed Signal, IP68

Part	Air Flow	Air Flow	Bearing Type	Fan Type	RPM	Lifetime @ Temp.	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]	Noise	Voltage - Rated	Material - Blade	Approval Agency	Power (Watts)	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Frame	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Lifetime @ Temp.	Operating Temperature [Max]	Weight	Weight	Features	Ingress Protection
ebm-papst Inc. 4312/19	100.1 CFM	2.8 m³/min	Ball	Tubeaxial	2800 RPM	Varies Based on Temperature	78 Pa	0.313 in H2O	8 VDC	13.2 VDC	45 dB(A)	12 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	CE CSA EAC UL VDE	5 W	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	32 mm	119 mm	119 mm	0.42 A
ebm-papst Inc. 4312MV	82.4 CFM	2.31 m³/min	Ball	Tubeaxial	2300 RPM				8 VDC	15 V	39 dB(A)	12 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	CSA UL VDE	3 W	2 Wire Leads	-20 °C		-20 C	65 °C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	32 mm	119 mm	119 mm		70000 Hrs	65 °C	219.99 g	0.485 lb
ebm-papst Inc. 4312G	100.1 CFM	2.8 m³/min	Sintec	Tubeaxial	2800 RPM				6 VDC	15 V	45 dB(A)	12 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	CE CSA UL VDE	5 W	2 Wire Leads	-20 °C	75 °C	-20 C	75 ░C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	32 mm	119 mm	119 mm		62500 Hrs		219.99 g	0.485 lb
ebm-papst Inc. 4312L	56 CFM	1.57 mł/min	Ball	Tubeaxial	1550 RPM				6 VDC	15 V	30 dB(A)	12 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	CE CSA UL VDE	1.2 W	2 Wire Leads	-20 °C	75 °C	-20 C	75 ░C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	32 mm	119 mm	119 mm		80000 Hrs		219.99 g	0.485 lb
ebm-papst Inc. 4312-179	120.2 CFM	3.37 mł/min	Ball	Tubeaxial	3400 RPM						45 dB(A)	12 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	CE CSA VDE	9.4 W	2 Wire Leads	-20 °C		-20 C	65 °C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	32 mm	119 mm	119 mm		47500 Hrs	65 °C	220 g	0.485 lb
ebm-papst Inc. 4312/2U	100.1 CFM	2.8 m³/min	Ball	Tubeaxial	2800 RPM				6 VDC	15 V	45 dB(A)	12 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	UL	5 W	3 Wire Leads	-20 °C		-20 C	65 °C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	32 mm	119 mm	119 mm			65 °C	259.91 g	0.573 lb	Speed Sensor (Tach)	IP68 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 72.62
		10	$ 65.71
		25	$ 61.38
		50	$ 60.52
		100	$ 55.76
Sager	N/A	1	$ 64.85
		5	$ 62.94
		10	$ 61.14
		20	$ 59.44
		50	$ 54.53
		100	$ 53.09
		200	$ 43.08

Description

General part information

4300U Series

DC Fans Tubeaxial, 119x32mm, 12V, 100.1CFM, 5W, 45dB, 2800RPM, Ball, Speed Signal, IP68
