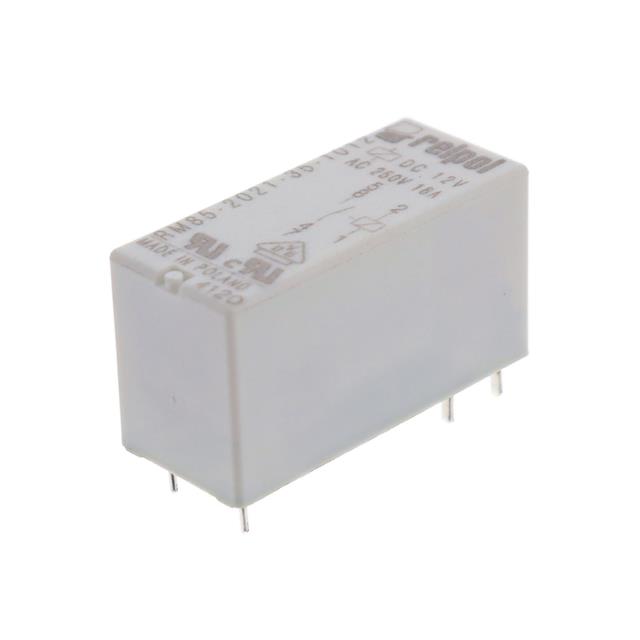

RM85-2021-35-1012

Active

Altech Corporation

RELAY GEN PURPOSE SPST 16A 12V

Deep-Dive with AI

Search across all available documentation for this part.

RM85-2021-35-1012

Active

Altech Corporation

RELAY GEN PURPOSE SPST 16A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RM85-2021-35-1012

Approval Agency	VDE, CSA, CCC, UR, CE
Coil Current	33 mA
Coil Resistance	360 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	16 A
Load - Max Switching	7040 VA
Mounting Type	Through Hole
Must Operate Voltage	30.6 VDC
Must Release Voltage	8.4 VDC
Operate Time	7 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	3 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	440 VAC
Termination Style	PC Pin

RM85-2021 Series

Part	Approval Agency	Coil Voltage	Contact Material	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Must Operate Voltage	Coil Current	Coil Resistance	Relay Type	Mounting Type	Termination Style	Operate Time	Contact Form	Switching Voltage	Load - Max Switching	Seal Rating	Contact Rating (Current)	Must Release Voltage
Altech Corporation RM85-2021-35-5110	CCC CE CSA UR VDE	110 VAC/DC	Silver Nickel (AgNi)	3 ms	-40 °C	70 °C	Non Latching	88 VAC/DC	12.4 mA	8.9 kOhms	General Purpose	Through Hole	PC Pin	7 ms	SPST-NO (1 Form A)	440 VAC	7040 VA	Sealed - Flux Protection	16 A
Altech Corporation RM85-2021-35-1060	CCC CE CSA UR VDE	60 VDC	Silver Nickel (AgNi)	3 ms	-40 °C	85 °C	Non Latching	42 VDC		7500 Ohms	General Purpose	Through Hole	PC Pin	7 ms	SPST-NO (1 Form A)	440 VAC	7040 VA	Sealed - Flux Protection	16 A
Altech Corporation RM85-2021-35-5220	CCC CE CSA UR VDE	220 VAC/DC	Silver Nickel (AgNi)	3 ms	-40 °C	70 °C	Non Latching	176 VAC	6.2 mA	35.5 kOhms	General Purpose	Through Hole	PC Pin	7 ms	SPST-NO (1 Form A)	440 VAC	7040 VA	Sealed - Flux Protection	16 A
Altech Corporation RM85-2021-35-1048	CCC CE CSA UR VDE	48 VDC	Silver Nickel (AgNi)	3 ms	-40 °C	85 °C	Non Latching	33.6 VDC	8.4 mA	5.7 kOhms	General Purpose	Through Hole	PC Pin	7 ms	SPST-NO (1 Form A)	440 VAC	7040 VA	Sealed - Flux Protection	16 A
Altech Corporation RM85-2021-35-1012	CCC CE CSA UR VDE	12 VDC	Silver Nickel (AgNi)	3 ms	-40 °C	85 °C	Non Latching	30.6 VDC	33 mA	360 Ohms	General Purpose	Through Hole	PC Pin	7 ms	SPST-NO (1 Form A)	440 VAC	7040 VA	Sealed - Flux Protection	16 A	8.4 VDC
TE Connectivity Raychem Cable Protection RM85-2021-35-1006	CCC CE CSA UR VDE		Silver Nickel (AgNi)	3 ms	-40 °C	85 °C	Non Latching	4.2 VDC	66.7 mA	90 Ohms	General Purpose	Through Hole	PC Pin	7 ms	SPST-NO (1 Form A)	440 VAC	7040 VA	Sealed - Flux Protection	16 A
Altech Corporation RM85-2021-35-1006	CCC CE CSA UR VDE		Silver Nickel (AgNi)	3 ms	-40 °C	85 °C	Non Latching	4.2 VDC	66.7 mA	90 Ohms	General Purpose	Through Hole	PC Pin	7 ms	SPST-NO (1 Form A)	440 VAC	7040 VA	Sealed - Flux Protection	16 A
Altech Corporation RM85-2021-35-1009	CCC CE CSA UR VDE	9 VDC	Silver Nickel (AgNi)	3 ms	-40 °C	85 °C	Non Latching	6.3 VDC	45 mA	200 Ohms	General Purpose	Through Hole	PC Pin	7 ms	SPST-NO (1 Form A)	440 VAC	7040 VA	Sealed - Flux Protection	16 A
TE Connectivity Raychem Cable Protection RM85-2021-35-5120	CCC CE CSA UR VDE	120 VAC	Silver Nickel (AgNi)	3 ms	-40 °C	70 °C	Non Latching	96 VAC	11.8 mA	10.2 kOhms	General Purpose	Through Hole	PC Pin	7 ms	SPST-NO (1 Form A)	440 VAC	7040 VA	Sealed - Flux Protection	16 A
Altech Corporation RM85-2021-35-5120	CCC CE CSA UR VDE	120 VAC	Silver Nickel (AgNi)	3 ms	-40 °C	70 °C	Non Latching	96 VAC	11.8 mA	10.2 kOhms	General Purpose	Through Hole	PC Pin	7 ms	SPST-NO (1 Form A)	440 VAC	7040 VA	Sealed - Flux Protection	16 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.58
		10	$ 5.23

Description

General part information

RM85-2021 Series

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
