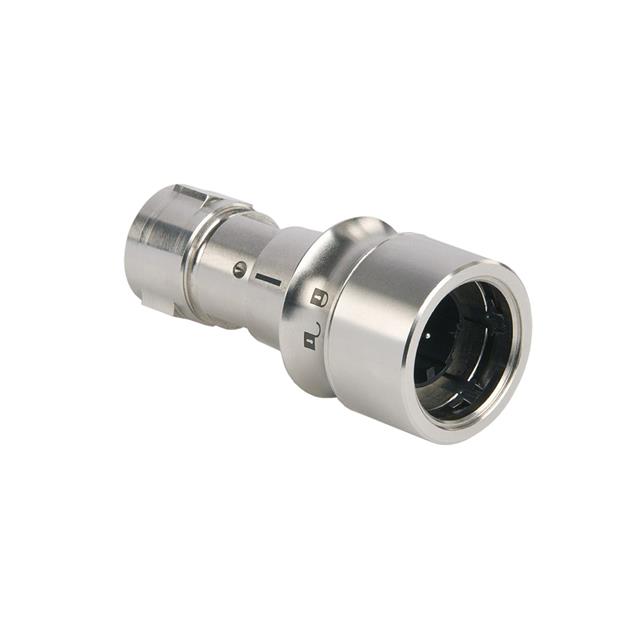

PXM6010/03P/CR/0507

Active

BULGIN LIMITED

6000 METAL SERIES FLEX CONNECTOR 3

Deep-Dive with AI

DocumentsDatasheet 6000 Series CE Cert +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXM6010/03P/CR/0507

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp and Solder Cup
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	3
Number of Positions [custom]	1
Number of Positions [custom]	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Unshielded
Type	For Male Pins

PXM6010 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Termination	Shell Finish	Ingress Protection	Features	Fastening Type	Voltage Rating	Number of Positions	Current Rating (Amps)	Cable Opening [custom]	Cable Opening [custom]	Contact Material	Shell Material	Color	Primary Material	Connector Type	Mounting Type	Contact Finish - Mating	Shielding	Housing Color	Contact Type	Contact Shape	Type	Note	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Cable Opening [diameter]	Cable Opening [diameter]
BULGIN LIMITED PXM6010/02P/ST/0709	-40 °C	120 °C	Keyed	Screw	Nickel	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Coupling Nut	Push-Twist	277 VAC/DC	2	16 A	0.276 in 0.354 in	7 mm 9 mm	Brass	Brass	Silver	Metal	Male Pins Receptacle	Free Hanging (In-Line)	Nickel	Unshielded
BULGIN LIMITED PXM6010/22P/CR	-40 °C	120 °C	Keyed		Nickel	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Backshell Coupling Nut	Push-Twist		22					Brass			Plug Housing	Free Hanging (In-Line)		Unshielded	Silver	Crimp and Solder Cup	Circular	For Male Pins	Contacts Not Included
BULGIN LIMITED PXM6010/02S/ST/0910/SN	-40 °C	120 °C	Keyed	Screw	Nickel	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Coupling Nut	Push-Twist	277 VAC/DC	2	16 A			Brass	Brass	Silver	Metal	Receptacle Female Sockets	Free Hanging (In-Line)	Nickel	Shielded						9 mm	0.394 in	10 mm	0.354 in
BULGIN LIMITED PXM6010/02S/CR/0405/SN	-40 °C	120 °C	Keyed		Nickel	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Backshell Coupling Nut	Push-Twist		2					Brass		Metal	Plug Housing	Free Hanging (In-Line)		Shielded	Silver	Crimp and Solder Cup	Circular	For Female Sockets	Contacts Not Included
BULGIN LIMITED PXM6010/02S/CR/0405	-40 °C	120 °C	Keyed		Nickel	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Backshell Coupling Nut	Push-Twist		2					Brass		Metal	Plug Housing	Free Hanging (In-Line)		Unshielded	Silver	Crimp and Solder Cup	Circular	For Female Sockets	Contacts Not Included
BULGIN LIMITED PXM6010/03S/ST/0910	-40 °C	120 °C	Keyed	Screw	Nickel	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Coupling Nut	Push-Twist	277 VAC/DC		16 A			Brass	Brass	Silver	Metal	Receptacle Female Sockets	Free Hanging (In-Line)	Nickel	Unshielded						9 mm	0.394 in	10 mm	0.354 in	3	1	2
BULGIN LIMITED PXM6010/02S/ST	-40 °C	120 °C	Keyed	Screw	Nickel	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Coupling Nut	Push-Twist	277 VAC/DC	2	16 A			Brass	Brass	Silver	Metal	Receptacle Female Sockets	Free Hanging (In-Line)	Nickel	Unshielded
BULGIN LIMITED PXM6010/02P/ST/0910	-40 °C	120 °C	Keyed	Screw	Nickel	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Coupling Nut	Push-Twist	277 VAC/DC	2	16 A			Brass	Brass	Silver	Metal	Male Pins Receptacle	Free Hanging (In-Line)	Nickel	Unshielded						9 mm	0.394 in	10 mm	0.354 in
BULGIN LIMITED PXM6010/03P/CR/0507	-40 °C	120 °C	Keyed		Nickel	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Backshell Coupling Nut	Push-Twist							Brass		Metal	Plug Housing	Free Hanging (In-Line)		Unshielded	Silver	Crimp and Solder Cup	Circular	For Male Pins	Contacts Not Included					3	1	2
BULGIN LIMITED PXM6010/03P/ST/0507/SN	-40 °C	120 °C	Keyed	Screw	Nickel	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Coupling Nut	Push-Twist	277 VAC/DC		16 A			Brass	Brass	Silver	Metal	Male Pins Receptacle	Free Hanging (In-Line)	Nickel	Shielded										3	1	2	0.197 in 0.276 in	5 mm 7 mm
