09370480301

Active

HARTING Technology Group

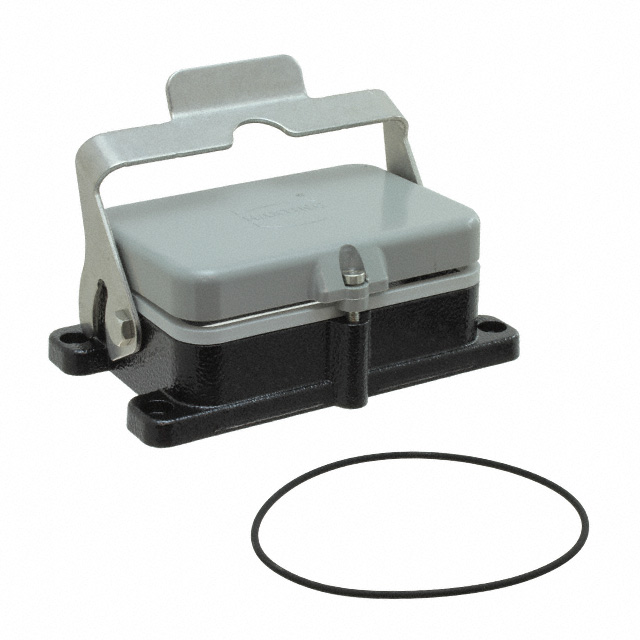

ENCLOSURE FOR CONNECTORS: HDC; SIZE 48B (2 X 24B); HAN® M; IP65

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 48B (2 X 24B); HAN® M; IP65

Technical Specifications

Parameters and characteristics for this part

Specification	09370480301

Connector Type	Base - Panel Mount
Features	Cover
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	48 B
Size / Dimension [x]	6.496 in
Size / Dimension [x]	165 mm
Size / Dimension [y]	96 mm
Size / Dimension [y]	3.78 in
Size / Dimension [z]	40 mm
Size / Dimension [z]	1.575 in
Style	Bottom Entry

Part	Lock Location	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Ingress Protection	Size	Housing Material	Housing Color	Style	Housing Finish	Features
HARTING Technology Group 09370480301	Locking Clip (1) on Base Bottom	6.496 in	165 mm	96 mm	40 mm	3.78 in	1.575 in	125 °C	-40 °C	Base - Panel Mount	IP65 - Dust Tight Water Resistant	48 B	Aluminum Die Cast	Black	Bottom Entry	Powder Coated	Cover

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 48B IP65 - Dust Tight, Water Resistant
