5958W

Obsolete

ebm-papst Inc.

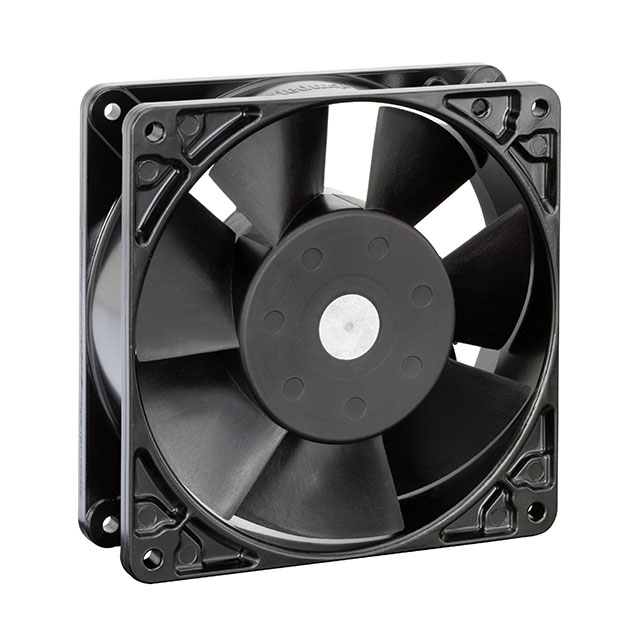

FAN AXIAL 127X38MM 230VAC WIRE

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

FAN AXIAL 127X38MM 230VAC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	5958W

Air Flow	3.39 mł/min
Air Flow	121.2 CFM
Approval Agency	UL, CSA, VDE, CCC, CE
Bearing Type	Ball
Current Rating (Amps)	0.095 A
Fan Type	Tubeaxial
Lifetime @ Temp.	42500 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Metal
Noise	46 dB(A)
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-30 ░C
Operating Temperature [Min]	-30 °C
Power (Watts)	17 W
RPM	3100 RPM
Size / Dimension [x]	127 mm
Size / Dimension [y]	127 mm
Static Pressure	0.261 in H2O
Static Pressure	65 Pa
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Weight	589.7 g
Weight	1.3 lbs
Width [y]	38 mm

Part	Power (Watts)	Fan Type	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Width [y]	Voltage - Rated	Noise	Material - Blade	Weight	Weight	Static Pressure	Static Pressure	Termination	RPM	Bearing Type	Material - Frame	Air Flow	Air Flow
ebm-papst Inc. 5958W	17 W	Tubeaxial	0.095 A	127 mm	127 mm	42500 Hrs	-30 ░C	75 ░C	75 °C	-30 °C	CCC CE CSA UL VDE	38 mm	230 VAC	46 dB(A)	Fiberglass Reinforced Nylon Polyamide (PA)	589.7 g	1.3 lbs	0.261 in H2O	65 Pa	2 Wire Leads	3100 RPM	Ball	Metal	3.39 mł/min	121.2 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 230VAC Square - 127mm L x 127mm H Ball 121.2 CFM (3.39m³/min) 2 Wire Leads
