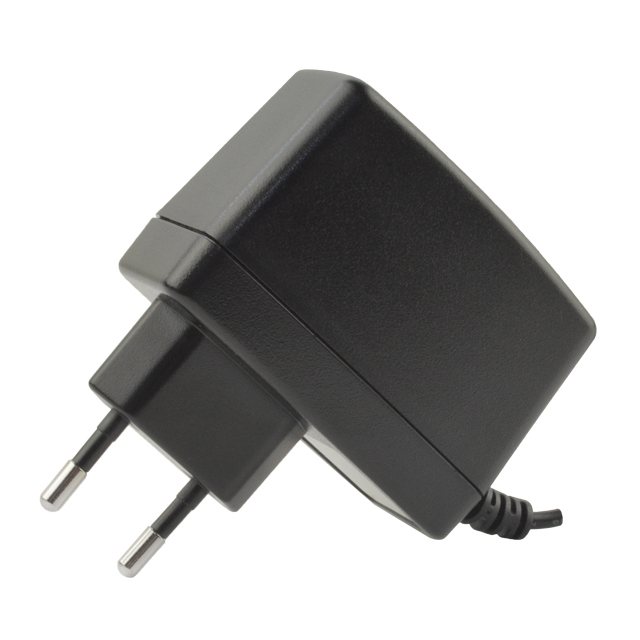

SWI25-5-E-P5

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 5V 20W

Deep-Dive with AI

Search across all available documentation for this part.

SWI25-5-E-P5

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 5V 20W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SWI25-5-E-P5

Applications	ITE (Commercial)
Approval Agency	FCC, EN, SIQ, TUV
Cord Length	1.22 m
Cord Length	48 in
Current - Output (Max) [Max]	4 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	20 W
Region Utilized	Europe
Size / Dimension [x]	71 mm
Size / Dimension [x]	2.8 in
Size / Dimension [y]	33 mm
Size / Dimension [y]	1.3 in
Size / Dimension [z]	48.4 mm
Size / Dimension [z]	1.91 in
Standard Number	61000-3-3, 61000-3-2, 55011 Class B, 60950-1, 61000-6-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

SWI25-N Series

Wall Mount AC Adapters 20W 5V 4A USA plug 2.1 DC plug

Part	Polarization	Region Utilized	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Input Connector	Current - Output (Max) [Max]	Power (Watts)	Voltage - Output	Applications	Input Type	Output Connector [diameter]	Output Connector [x]	Output Connector	Form	Cord Length	Cord Length	Efficiency	Approval Agency
CUI Inc. SWI25-5-N-P5	Positive Center	North America	-20 C	40 °C	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1	90 VAC	264 VAC	75 mW	71 mm	48.4 mm	1.91 in	2.8 in	33 mm	1.3 in	NEMA 1-15P	4 A	20 W	5 V	ITE (Commercial)	Fixed Blade	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Wall Mount (Class II)	1.22 m	48 in	Level VI
CUI Inc. SWI25-12-N-P5	Positive Center	North America	-20 C	40 °C	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1	90 VAC	264 VAC	75 mW	71 mm	48.4 mm	1.91 in	2.8 in	33 mm	1.3 in	NEMA 1-15P	2.1 A	25 W	12 V	ITE (Commercial)	Fixed Blade	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Wall Mount (Class II)	1.8 m	70.9 in	Level VI
CUI Inc. SWI25-5-E-P5	Positive Center	Europe	-20 C	40 °C	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1	90 VAC	264 VAC	75 mW	71 mm	48.4 mm	1.91 in	2.8 in	33 mm	1.3 in	CEE 7/16	4 A	20 W	5 V	ITE (Commercial)	Fixed Blade	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Wall Mount (Class II)	1.22 m	48 in	CoC Tier 2 Level VI	EN FCC SIQ TUV
CUI Inc. SWI25-18-N-P5	Positive Center	North America	-20 C	40 °C	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1	90 VAC	264 VAC	75 mW	71 mm	48.4 mm	1.91 in	2.8 in	33 mm	1.3 in	NEMA 1-15P	1.4 A	25 W	18 V	ITE (Commercial)	Fixed Blade	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Wall Mount (Class II)	1.8 m	70.9 in	Level VI
CUI Inc. SWI25-24-E-P5	Positive Center	Europe	-20 C	40 °C	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1	90 VAC	264 VAC	75 mW	71 mm	48.4 mm	1.91 in	2.8 in	33 mm	1.3 in	CEE 7/16	1.05 A	25 W	24 V	ITE (Commercial)	Fixed Blade	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Wall Mount (Class II)	1.8 m	70.9 in	CoC Tier 2 Level VI	EN FCC SIQ TUV
CUI Inc. SWI25-15-E-P5	Positive Center	Europe	-20 C	40 °C	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1	90 VAC	264 VAC	75 mW	71 mm	48.4 mm	1.91 in	2.8 in	33 mm	1.3 in	CEE 7/16	1.67 A	25 W	15 VDC	ITE (Commercial)	Fixed Blade	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Wall Mount (Class II)	1.8 m	70.9 in	CoC Tier 2 Level VI	EN FCC SIQ TUV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.42
		5	$ 19.12
		10	$ 18.82
		25	$ 17.92
		50	$ 17.32
		100	$ 16.13
		250	$ 15.89

Description

General part information

SWI25-N Series

Wall Mount AC Adapters 20W 5V 4A USA plug 2.1 DC plug
