3230-40-0104-00

Active

CnC Tech, LLC

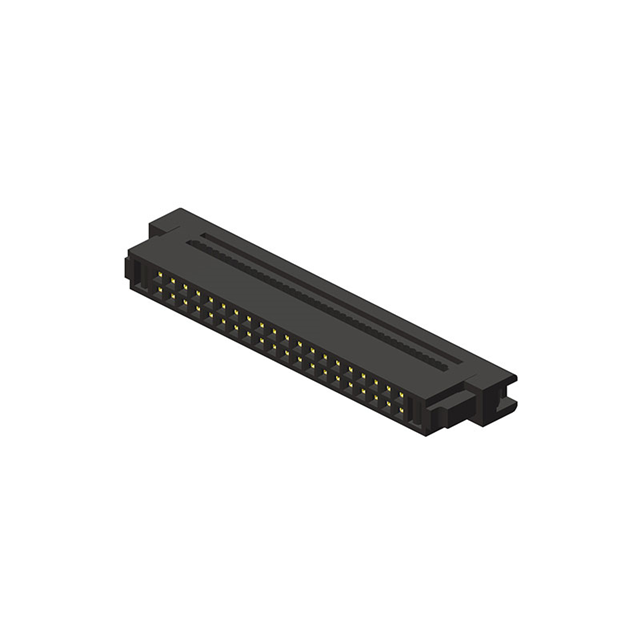

CONN SOCKET 40POS IDC GOLD

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN SOCKET 40POS IDC GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Cable Termination	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Contact Type	Wire Type	Connector Type	Contact Finish Thickness	Row Spacing	Row Spacing	Mounting Type	Features
CnC Tech, LLC 3230-40-0102-00	Gold	IDC	2	40	0.05 in	1.27 mm	Female Socket	Ribbon Cable	Socket	Flash	1.27 mm	0.05 in	Free Hanging (In-Line)	Feed Through Polarizing Key
CnC Tech, LLC 3230-40-0101-00	Gold	IDC	2	40	0.05 in	1.27 mm	Female Socket	Ribbon Cable	Socket	Flash	1.27 mm	0.05 in	Free Hanging (In-Line)	Feed Through
CnC Tech, LLC 3230-40-0104-00	Gold	IDC	2	40	0.05 in	1.27 mm	Female Socket	Ribbon Cable	Socket	Flash	1.27 mm	0.05 in	Free Hanging (In-Line)	Feed Through Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Rectangular Socket Connector IDC Gold
