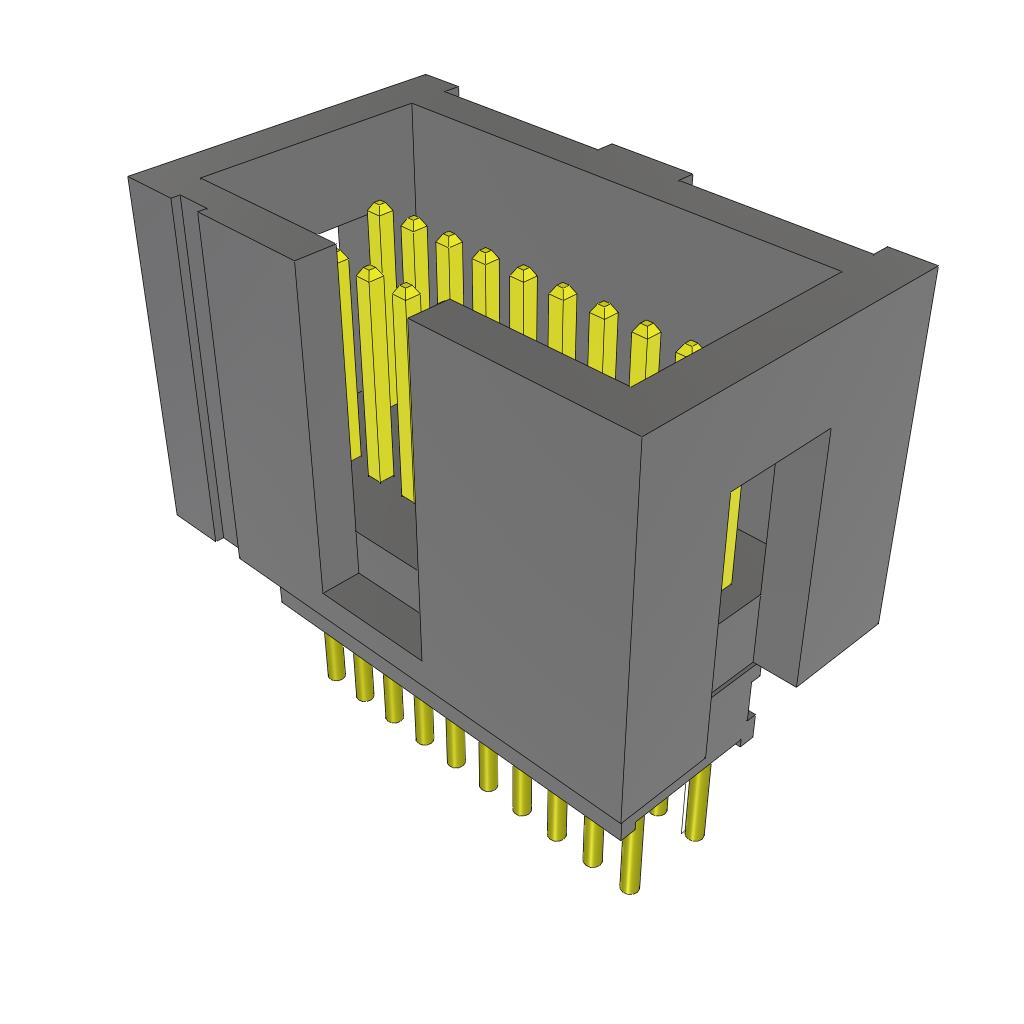

ZML-110-01-S-D

Active

Samtec Inc.

CONN HEADER VERT 20POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ZML Datasheet +1

ZML-110-01-S-D

Active

Samtec Inc.

CONN HEADER VERT 20POS 1.27MM

Deep-Dive with AI

DocumentsDatasheet ZML Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZML-110-01-S-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Termination	Solder

ZML-110 Series

Part	Contact Type	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Contact Finish - Post	Insulation Height	Insulation Height	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Contact Length - Mating	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Material	Contact Shape	Shrouding	Features	Mounting Type	Insulation Material	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Length - Mating
Samtec Inc. ZML-110-02-H-D	Male Pin	Gold	2.54 mm	0.1 in	Header	Gold	0.56 in	14.22 mm	20	30 Áin	0.76 Ám	0.23 in	5.84 mm	Push-Pull	0.12 in	3.05 mm	3 µin	0.076 µm	All	Phosphor Bronze	Square	Shrouded - 4 Wall	Keying Slot	Through Hole	Liquid Crystal Polymer (LCP)	2	0.05 in	1.27 mm	Black	-55 °C	125 °C	Solder
Samtec Inc. ZML-110-53-L-D-709-SM	Male Pin	Gold	2.54 mm	0.1 in	Header	Tin	0.709 in	18 mm	20	10 çin	0.25 çm		3.05 mm	Push-Pull					All	Phosphor Bronze	Square	Shrouded - 4 Wall	Keying Slot	Surface Mount	Liquid Crystal Polymer (LCP)	2	0.05 in	1.27 mm	Black	-55 °C	125 °C	Solder	0.12 in
Samtec Inc. ZML-110-53-L-D-795-SM	Male Pin	Gold	2.54 mm	0.1 in	Header	Tin	0.795 in	20.19 mm	20	10 çin	0.25 çm		3.05 mm	Push-Pull					All	Phosphor Bronze	Square	Shrouded - 4 Wall	Keying Slot	Surface Mount	Liquid Crystal Polymer (LCP)	2	0.05 in	1.27 mm	Black	-55 °C	125 °C	Solder	0.12 in
Samtec Inc. ZML-110-01-S-D	Male Pin	Gold	2.54 mm	0.1 in	Header	Tin			20	30 Áin	0.76 Ám	0.23 in	5.84 mm	Push-Pull	0.12 in	3.05 mm			All	Phosphor Bronze	Square	Shrouded - 4 Wall	Keying Slot	Through Hole	Liquid Crystal Polymer (LCP)	2	0.05 in	1.27 mm	Black	-55 °C	125 °C	Solder
Samtec Inc. ZML-110-54-L-D-532-SM	Male Pin	Gold	2.54 mm	0.1 in	Header	Tin	0.532 "	13.51 mm	20	10 çin	0.25 çm	0.23 in	5.84 mm	Push-Pull					All	Phosphor Bronze	Square	Shrouded - 4 Wall	Keying Slot	Surface Mount	Liquid Crystal Polymer (LCP)	2	0.05 in	1.27 mm	Black	-55 °C	125 °C	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.79
