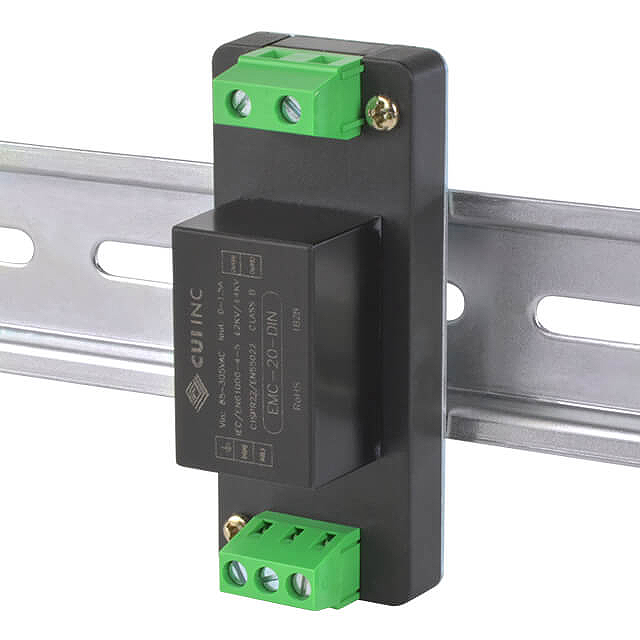

EMC-20-DIN
CUI Inc.
LINE FILTER 85V-305VAC 1.5A DIN
Deep-Dive with AI
Search across all available documentation for this part.
EMC-20-DIN
CUI Inc.
LINE FILTER 85V-305VAC 1.5A DIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EMC-20-DIN |
|---|---|
| Applications | General Purpose |
| Configuration | Single Stage |
| Current | 1.5 A |
| Filter Type | Single Phase |
| Frequency - Operating | 63 Hz, 47 Hz |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC [Max] | 305 V |
| Voltage - Rated AC [Min] | 85 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 16.84 | |
| 24 | $ 16.31 | |||
| 48 | $ 15.26 | |||
| 96 | $ 13.68 | |||
| 240 | $ 13.16 | |||
| 456 | $ 13.03 | |||
Description
General part information
EMC-20 Series
Single Phase EMC/EMI Line Filter 1.5 A 85V ~ 305V 47Hz, 63Hz Single Stage Terminal Block
Documents
Technical documentation and resources
No documents available
