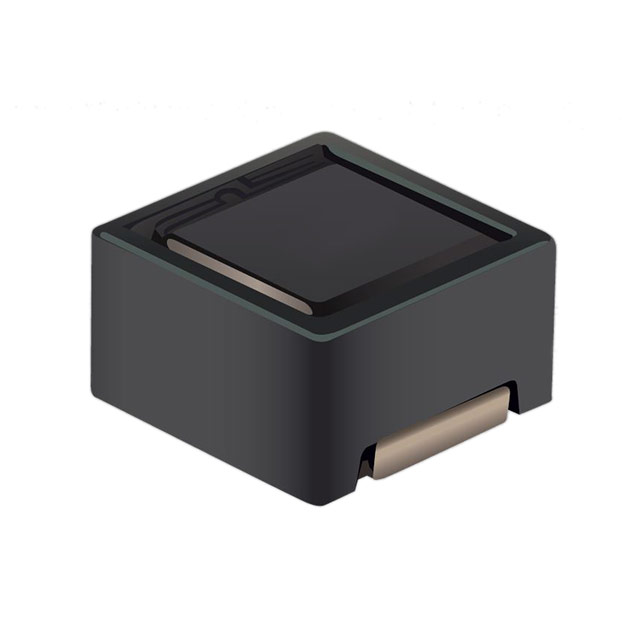

SRR4828A-8R2Y

Active

Bourns Inc.

IND,4.8X4.8X2.8MM,8.2UH30%,2.4A,SHDSMD /TAPE & REEL - 7" REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Product Change Notice EN +1

SRR4828A-8R2Y

Active

Bourns Inc.

IND,4.8X4.8X2.8MM,8.2UH30%,2.4A,SHDSMD /TAPE & REEL - 7" REEL

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRR4828A-8R2Y

Current - Saturation (Isat)	1.25 A
Current Rating (Amps)	2.4 A
DC Resistance (DCR) [Max]	87 mOhm
Frequency - Self Resonant	35 MHz
Height - Seated (Max)	3 mm
Height - Seated (Max) [Max]	0.118 in
Inductance	8.2 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Package / Case	Nonstandard
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	0.189 "
Size / Dimension [x]	4.8 mm
Size / Dimension [y]	4.8 mm
Size / Dimension [y]	0.189 in
Tolerance	30 %
Type	Wirewound, Drum Core

SRR4828A Series

Part	Material - Core	Ratings	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Type	Frequency - Self Resonant	Package / Case	Current Rating (Amps)	Height - Seated (Max)	Height - Seated (Max) [Max]	Tolerance	Inductance	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Mounting Type	Shielding	DC Resistance (DCR)
Bourns Inc. SRR4828A-1R8Y	Ferrite	AEC-Q200	2.5 A	0.189 "	4.8 mm	4.8 mm	0.189 in	Drum Core Wirewound	105 MHz	Nonstandard	4.6 A	3 mm	0.118 in	30 %	1.8 µH	100 kHz	30 mOhm	Surface Mount	Shielded
Bourns Inc. SRR4828A-1R2Y	Ferrite	AEC-Q200	3 A	0.189 "	4.8 mm	4.8 mm	0.189 in	Drum Core Wirewound	155 MHz	Nonstandard	5 A	3 mm	0.118 in	30 %	1.2 µH	100 kHz	24 mOhm	Surface Mount	Shielded
Bourns Inc. SRR4828A-151M	Ferrite	AEC-Q200	280 mA	0.189 "	4.8 mm	4.8 mm	0.189 in	Drum Core Wirewound	7 MHz	Nonstandard	600 mA	3 mm	0.118 in	20 %	150 µH	100 kHz		Surface Mount	Shielded	860 mOhm
Bourns Inc. SRR4828A-820M	Ferrite	AEC-Q200	350 mA	0.189 "	4.8 mm	4.8 mm	0.189 in	Drum Core Wirewound	10 MHz	Nonstandard	0.85 A	3 mm	0.118 in	20 %	82 µH	100 kHz		Surface Mount	Shielded	480 mOhm
Bourns Inc. SRR4828A-6R8Y	Ferrite	AEC-Q200	1.3 A	0.189 "	4.8 mm	4.8 mm	0.189 in	Drum Core Wirewound	40 MHz	Nonstandard	2.6 A	3 mm	0.118 in	30 %	6.8 µH	100 kHz	74 mOhm	Surface Mount	Shielded
Bourns Inc. SRR4828A-8R2Y	Ferrite	AEC-Q200	1.25 A	0.189 "	4.8 mm	4.8 mm	0.189 in	Drum Core Wirewound	35 MHz	Nonstandard	2.4 A	3 mm	0.118 in	30 %	8.2 µH	100 kHz	87 mOhm	Surface Mount	Shielded
Bourns Inc. SRR4828A-2R7Y	Ferrite	AEC-Q200	2.2 A	0.189 "	4.8 mm	4.8 mm	0.189 in	Drum Core Wirewound	80 MHz	Nonstandard	4 A	3 mm	0.118 in	30 %	2.7 µH	100 kHz	34 mOhm	Surface Mount	Shielded
Bourns Inc. SRR4828A-4R7Y	Ferrite	AEC-Q200	1.6 A	0.189 "	4.8 mm	4.8 mm	0.189 in	Drum Core Wirewound	50 MHz	Nonstandard	3 A	3 mm	0.118 in	30 %	4.7 ÁH	100 kHz	54 mOhm	Surface Mount	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.86
		10	$ 0.74
		25	$ 0.68
		50	$ 0.62
		100	$ 0.55
		250	$ 0.52
	Digi-Reel®	1	$ 0.86
		10	$ 0.74
		25	$ 0.68
		50	$ 0.62
		100	$ 0.55
		250	$ 0.52
	Tape & Reel (TR)	500	$ 0.44
		1000	$ 0.39
		2500	$ 0.38
		5000	$ 0.37
		12500	$ 0.36
		25000	$ 0.34
Newark	Each (Supplied on Full Reel)	1	$ 0.43
		5000	$ 0.42
		10000	$ 0.39
		20000	$ 0.36
		30000	$ 0.34
		50000	$ 0.32

Description

General part information

SRR4828A Series

8.2 µH Shielded Drum Core, Wirewound Inductor 2.4 A 87mOhm Max Nonstandard

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Product Change Notice EN

Datasheet
