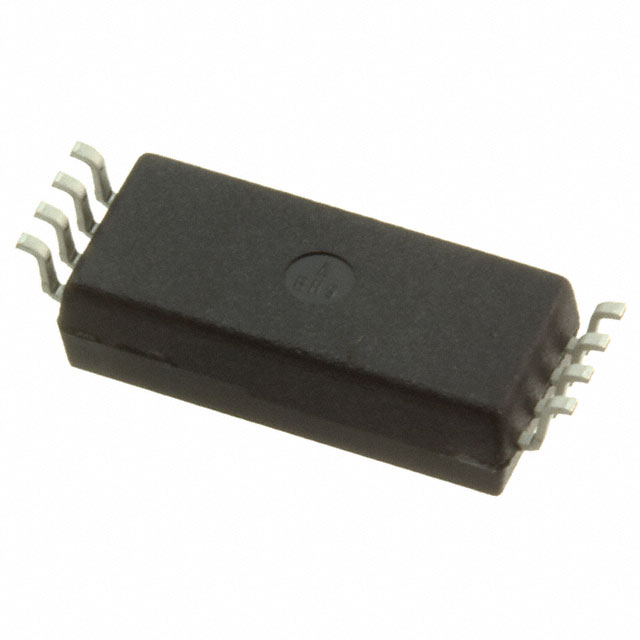

ACNT-H50L-500E

Active

Broadcom Limited

OPTOCOUPLER, TRANSISTOR, 7.5KV, SSO ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Broadcom Limited

OPTOCOUPLER, TRANSISTOR, 7.5KV, SSO ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	ACNT-H50L-500E

Current - DC Forward (If) (Max) [Max]	20 mA
Current - Output / Channel [custom]	8 mA
Current Transfer Ratio (Max) [Max]	80 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Output Type	1.81 mOhm
Package / Case	8-SOIC
Package / Case	13.6 mm
Package / Case	0.535 in
Supplier Device Package	8-SO Stretched
Turn On / Turn Off Time (Typ)	800 ns, 1 µs
Voltage - Forward (Vf) (Typ)	1.45 V
Voltage - Isolation	7500 Vrms
Voltage - Output (Max)	24 V

Part	Input Type	Turn On / Turn Off Time (Typ)	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Package / Case	Number of Channels	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Max)	Supplier Device Package	Current - DC Forward (If) (Max) [Max]	Output Type	Current Transfer Ratio (Max) [Max]	Current - Output / Channel [custom]	Mounting Type	Voltage - Isolation
Broadcom Limited ACNT-H50L-000E	DC	1 µs 800 ns	1.45 V	8-SOIC	13.6 mm	0.535 in	1	-40 °C	105 ░C	24 V	8-SO Stretched	20 mA	1.81 mOhm	80 %	8 mA	Surface Mount	7500 Vrms
Broadcom Limited ACNT-H50L-500E	DC	1 µs 800 ns	1.45 V	8-SOIC	13.6 mm	0.535 in	1	-40 °C	105 ░C	24 V	8-SO Stretched	20 mA	1.81 mOhm	80 %	8 mA	Surface Mount	7500 Vrms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 7500Vrms 1 Channel 8-SO Stretched
