TT340N22KOFXPSA1

Active

Infineon Technologies

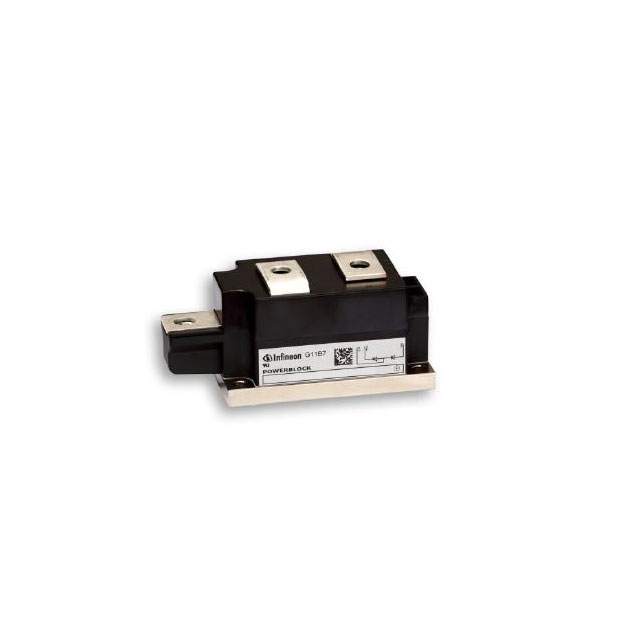

THE TT340N22KOF IS A 50 MM THYRISTOR/THYRISTOR MODULE WITH 2200 V IN PRESSURE CONTACT TECHNOLOGY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TT340N22KOFXPSA1

Active

Infineon Technologies

THE TT340N22KOF IS A 50 MM THYRISTOR/THYRISTOR MODULE WITH 2200 V IN PRESSURE CONTACT TECHNOLOGY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TT340N22KOFXPSA1

Current - Gate Trigger (Igt) (Max) [Max]	200 mA
Current - Hold (Ih) (Max) [Max]	300 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	9500 A
Current - On State (It (AV)) (Max) [Max]	338 A
Current - On State (It (RMS)) (Max)	520 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature	135 °C
Package / Case	Module
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max) [Max]	2 V
Voltage - Off State	2.2 kV

TT340 Series

Part	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Number of SCRs, Diodes	Mounting Type	Current - On State (It (RMS)) (Max)	Current - On State (It (AV)) (Max) [Max]	Operating Temperature	Package / Case	Current - Hold (Ih) (Max) [Max]	Structure
Infineon Technologies TT340N22KOFXPSA1	200 mA	2.2 kV	2 V	9500 A	2 SCRs	Chassis Mount	520 A	338 A	135 °C	Module	300 mA	Series Connection - All SCRs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 248.00
		12	$ 232.28
Newark	Each	1	$ 224.80
		6	$ 224.80
		12	$ 224.79
		27	$ 224.79

Description

General part information

TT340 Series

Thyristor/Thyristor 50 mm Prime Block 2200 V, 340 A module for phase control inpressure contact technology. TT340N22KOF offers highest current density and highest surge current in standard 50 mm housing.
