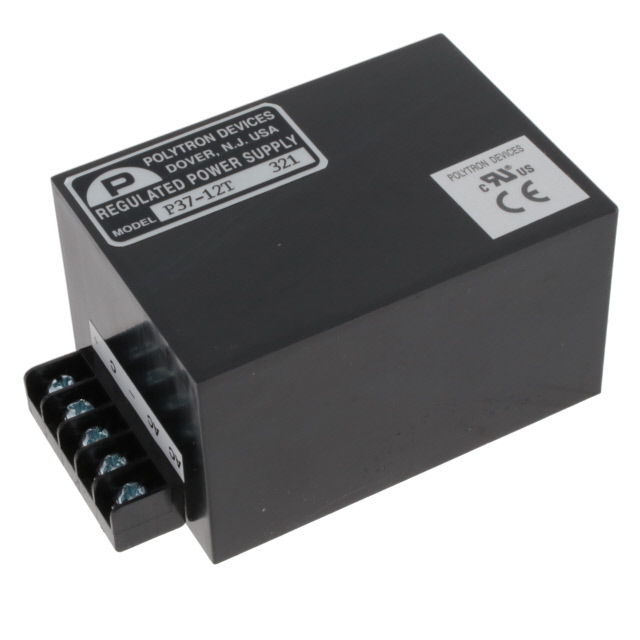

P37-12T

Active

Polytron

AC/DC CONVERTER +/-12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet P3, P5 Series Datasheet~

P37-12T

Active

Polytron

AC/DC CONVERTER +/-12V

Deep-Dive with AI

DocumentsDatasheet P3, P5 Series Datasheet~

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P37-12T

Applications	ITE (Commercial)
Approval Agency	CE, cURus, UL
Current - Output 1	500 mA
Current - Output 2	500 mA
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-25 °C
Size / Dimension [x]	104.1 mm
Size / Dimension [x]	4.1 "
Size / Dimension [y]	2.5 in
Size / Dimension [y]	63.5 mm
Size / Dimension [z]	50.8 mm
Size / Dimension [z]	2 "
Type	Enclosed
Voltage - Input [Max]	125 VAC
Voltage - Input [Min]	105 VAC
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

P37-12 Series

Part	Load Regulation	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Type	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Package / Case	Line Regulation	Applications	Current - Output (Max)	Current - Output (Max)	Features	Current - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 2	Voltage - Output 2	Current - Output (Max) [Max]
Polytron P37-12/MHIA	0.1 %	12 V	-25 °C	71 °C	Through Hole	Enclosed	125 VAC	105 VAC	CE cURus	2	3.5 in	63.5 mm	63.5 mm	51 mm	2.01 in	88.9 mm	7-DIP Module 5 Leads	0.1 %	Medical	500 mA	500 mA
Polytron P37-12/22	0.1 %	12 V	-25 °C	71 °C	Through Hole	Enclosed	125 VAC	105 VAC	CE cURus UL	2	3.5 in	63.5 mm	63.5 mm	51 mm	2.01 in	88.9 mm	5-DIP Module	0.1 %	ITE (Commercial)	500 mA	500 mA	SCP
Polytron P37-12ST		12 V	-25 °C	71 °C	Chassis Mount	Enclosed	125 VAC	105 VAC	CE cURus UL	1									ITE (Commercial)				500 mA
Polytron P37-12-04	0.1 %	12 V	-25 °C	71 °C	Through Hole	Enclosed	125 VAC	105 VAC	CE cURus UL	2	3.5 in	63.5 mm	63.5 mm	51 mm	2.01 in	88.9 mm	7-DIP Module 5 Leads	0.1 %	ITE (Commercial)	500 mA	500 mA	SCP
Polytron P37-12-FST		12 V	-25 °C	71 °C	Chassis Mount	Enclosed	125 VAC	105 VAC	CE cURus UL	2	104.1 mm		63.5 mm		50.8 mm				ITE (Commercial)				500 mA	4.1 "	2.5 in	2 "	500 mA	-12 V
Polytron P37-12SQX/MHIA	0.1 %	12 V	-25 °C	71 °C	Through Hole	Enclosed	220 VAC	100 VAC	CE cURus	1	88.9 mm		63.5 mm		39.6 mm		7-DIP Module 5 Leads	0.02 %	Medical					3.5 in	2.5 in	1.56 in			500 mA
Polytron P37-12SW	0.1 %	12 V	-40 °C	85 °C	Through Hole	Enclosed	125 VAC	105 VAC	CE cURus UL	1	88.9 mm		63.5 mm		39.6 mm		7-DIP Module 5 Leads	0.02 %	ITE (Commercial)			SCP		3.5 in	2.5 in	1.56 in			500 mA
Polytron P37-12X	0.1 %	12 V	-25 °C	71 °C	Through Hole	Enclosed	125 VAC	105 VAC	CE cURus UL	2	3.5 in	63.5 mm	63.5 mm	51 mm	2.01 in	88.9 mm	7-DIP Module 5 Leads	0.1 %	ITE (Commercial)	500 mA	500 mA	SCP
Polytron P37-12S	0.1 %	12 V	-25 °C	71 °C	Through Hole	Enclosed	125 VAC	105 VAC	CE cURus UL	1	88.9 mm		63.5 mm		39.6 mm		7-DIP Module 5 Leads	0.02 %	ITE (Commercial)			SCP		3.5 in	2.5 in	1.56 in			500 mA
Polytron P37-12T		12 V	-25 °C	71 °C	Chassis Mount	Enclosed	125 VAC	105 VAC	CE cURus UL	2	104.1 mm		63.5 mm		50.8 mm				ITE (Commercial)				500 mA	4.1 "	2.5 in	2 "	500 mA	-12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 247.45
		5	$ 238.61
		10	$ 235.08

Description

General part information

P37-12 Series

Enclosed AC DC Converters 2 Output 12V -12V 105 ~ 125 VAC Input

Documents

Technical documentation and resources

Datasheet

P3, P5 Series Datasheet~

Datasheet
