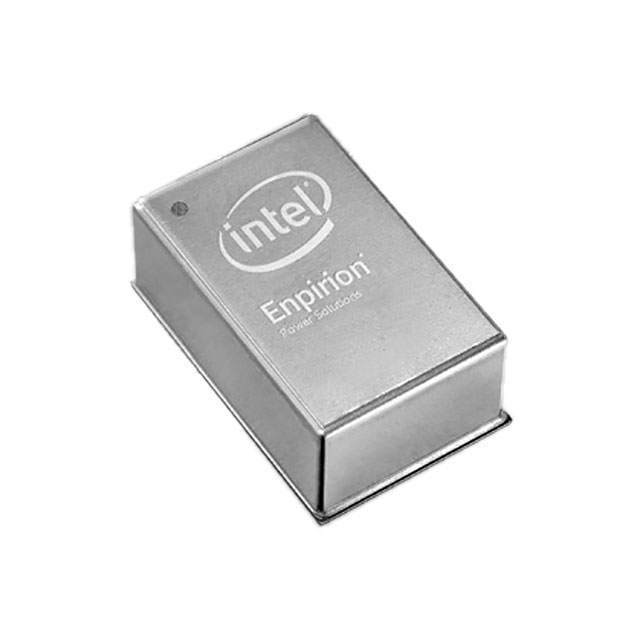

EM2130L01QI

Obsolete

Altera

DC DC CONVERTER 0.7-1.325V

Search across all available documentation for this part.

Obsolete

Altera

DC DC CONVERTER 0.7-1.325V

Technical Specifications

Parameters and characteristics for this part

Specification	EM2130L01QI

Applications	ITE (Commercial)
Current - Output (Max) [Max]	30 A
Efficiency	90 %
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	100-PowerBQFN Module
Size / Dimension [x]	17 mm
Size / Dimension [x]	0.67 in
Size / Dimension [y]	0.43 in
Size / Dimension [y]	11 mm
Size / Dimension [z]	6.8 mm
Size / Dimension [z]	0.27 "
Type	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	16 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1 [Max]	1.325 V
Voltage - Output 1 [Min]	0.7 V

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Mounting Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Efficiency	Applications	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]
Altera EM2130L01QI	100-PowerBQFN Module	85 °C	-40 °C	Non-Isolated PoL Module Digital	1.325 V	0.7 V	Surface Mount	1	0.43 in	17 mm	11 mm	0.67 in	6.8 mm	0.27 "	90 %	ITE (Commercial)	16 V	4.5 V	30 A
Altera EM2130L02QI	104-PowerBQFN Module	85 °C	-40 °C	Non-Isolated PoL Module Digital	1.325 V	0.7 V	Surface Mount	1	0.43 in	17 mm	11 mm	0.67 in	6.8 mm	0.27 "	90 %	ITE (Commercial)	16 V	4.5 V	30 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.7 ~ 1.325V 30A 4.5V - 16V Input
