H3CWH-4036G

Active

Assmann WSW Components

IDC CBL - HHKC40H/AE40G/HHPL40H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKC40H/AE40G/HHPL40H

Technical Specifications

Parameters and characteristics for this part

Specification	H3CWH-4036G

Cable Termination	IDC
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Polarizing Key (Socket), Polarizing Key (Plug), Flange
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Length	Length	Length	Cable Termination	Features	Number of Rows	Contact Finish Thickness	Color	Pitch - Cable	Pitch - Cable	Shielding	Pitch - Connector	Pitch - Connector	Connector Type	Contact Finish	Number of Positions	Length [x]	Length [x]
Assmann WSW Components H3CWH-4006M	152.4 mm	6 "	0.5 '	IDC	Flange Polarizing Key (Plug) Polarizing Key (Socket)	2	Flash	Multiple Ribbon	0.05 "	1.27 mm	Unshielded	0.1 in	2.54 mm	Socket to Plug	Gold	40
Assmann WSW Components H3CWH-4036G				IDC	Flange Polarizing Key (Plug) Polarizing Key (Socket)	2	Flash		0.05 "	1.27 mm	Unshielded	0.1 in	2.54 mm	Socket to Plug	Gold	40	3 ft	914.4 mm
Assmann WSW Components H3CWH-4036M				IDC	Flange Polarizing Key (Plug) Polarizing Key (Socket)	2	Flash	Multiple Ribbon	0.05 "	1.27 mm	Unshielded	0.1 in	2.54 mm	Socket to Plug	Gold	40	3 ft	914.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

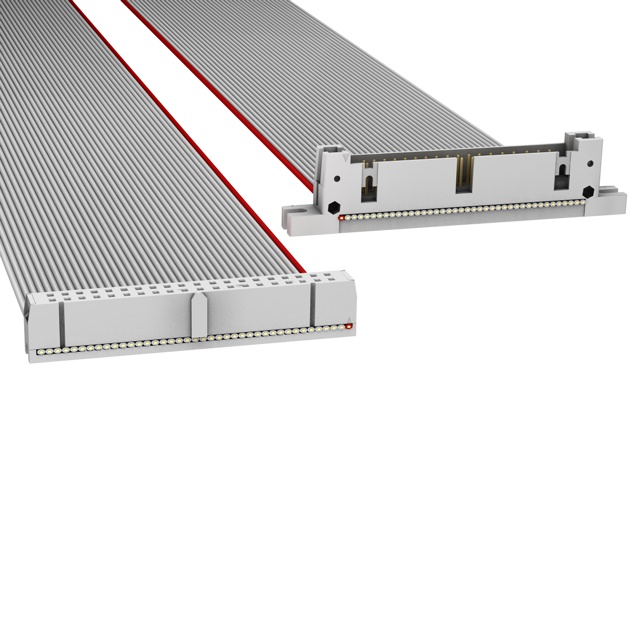

40 Position Cable Assembly Rectangular Socket to Plug 3.00' (914.40mm)

Technical documentation and resources
