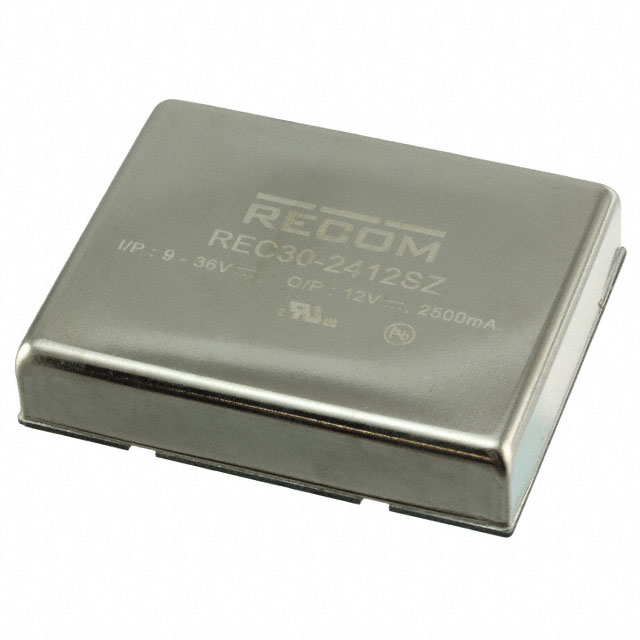

REC30-2412SZ

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W 9-36VIN 12VOUT 2500MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

REC30-2412SZ

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W 9-36VIN 12VOUT 2500MA

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REC30-2412SZ

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	2.5 A
Efficiency	88.5 %
Features	SCP, UVLO, Remote On/Off, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module, 6 Leads
Power (Watts)	30 W
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	40.64 mm
Size / Dimension [z]	0.4 in
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	12 V

REC30-483.4 Series

Isolated DC/DC Converters - Through Hole 30W 9-36Vin 5.1Vout 6000mA

Part	Power (Watts)	Package / Case	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)	Number of Outputs	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Type	Voltage - Input (Min) [Min]	Applications	Control Features	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Output 2	Efficiency	Mounting Type	Current - Output (Max) [Max]
RECOM Power REC30-2415DZ	30 W	8-DIP Module 7 Leads	1.6 kV	1 A	1 A	2	0.4 in	50.8 mm	40.64 mm	OVP Remote On/Off SCP UVLO	Isolated Module	9 V	ITE (Commercial)	Active High Enable	15 V	85 °C	-40 °C	36 V	-15 V	89 %	Through Hole
RECOM Power REC30-4812SZ	30 W	8-DIP Module 6 Leads	1.6 kV			1	0.4 in	50.8 mm	40.64 mm	OVP Remote On/Off SCP UVLO	Isolated Module	18 V	ITE (Commercial)	Active High Enable	12 V	85 °C	-40 °C	75 V		89 %	Through Hole	2.5 A
RECOM Power REC30-245.1S	30 W	8-DIP Module 6 Leads	1.6 kV			1	0.4 in	50.8 mm	40.64 mm	OVP Remote On/Off SCP UVLO	Isolated Module	18 V	ITE (Commercial)	Active High Enable	5.1 V	85 °C	-40 °C	36 V		89 %	Through Hole	6 A
RECOM Power REC30-4812DZ	30 W	8-DIP Module 7 Leads	1.6 kV	1.25 A		2	0.4 in	50.8 mm	40.64 mm	OVP Remote On/Off SCP UVLO	Isolated Module	18 V	ITE (Commercial)	Active High Enable	12 V	85 °C	-40 °C	75 V	-12 V	88 %	Through Hole
RECOM Power REC30-4812S	30 W	8-DIP Module 6 Leads	1.6 kV			1	0.4 in	50.8 mm	40.64 mm	OVP Remote On/Off SCP UVLO	Isolated Module	36 V	ITE (Commercial)	Active High Enable	12 V	85 °C	-40 °C	75 V		90 %	Through Hole	2.5 A
RECOM Power REC30-2415SZ	30 W	8-DIP Module 6 Leads	1.6 kV			1	0.4 in	50.8 mm	40.64 mm	OVP Remote On/Off SCP UVLO	Isolated Module	9 V	ITE (Commercial)	Active High Enable	15 V	85 °C	-40 °C	36 V		89 %	Through Hole	2 A
RECOM Power REC30-483.4S	30 W	8-DIP Module 6 Leads	1.6 kV			1	0.4 in	50.8 mm	40.64 mm	OVP Remote On/Off SCP UVLO	Isolated Module	36 V	ITE (Commercial)	Active High Enable	3.4 V	85 °C	-40 °C	75 V		87.5 %	Through Hole	6 A
RECOM Power REC30-245.1SZ	30 W	8-DIP Module 6 Leads	1.6 kV			1	0.4 in	50.8 mm	40.64 mm	OVP Remote On/Off SCP UVLO	Isolated Module	9 V	ITE (Commercial)	Active High Enable	5.1 V	85 °C	-40 °C	36 V		87.5 %	Through Hole	6 A
RECOM Power REC30-4812D	30 W	8-DIP Module 7 Leads	1.6 kV	1.25 A		2	0.4 in	50.8 mm	40.64 mm	OVP Remote On/Off SCP UVLO	Isolated Module	36 V	ITE (Commercial)	Active High Enable	12 V	85 °C	-40 °C	75 V	-12 V	89 %	Through Hole
RECOM Power REC30-2412SZ	30 W	8-DIP Module 6 Leads	1.6 kV			1	0.4 in	50.8 mm	40.64 mm	OVP Remote On/Off SCP UVLO	Isolated Module	9 V	ITE (Commercial)	Active High Enable	12 V	85 °C	-40 °C	36 V		88.5 %	Through Hole	2.5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 74.82
		5	$ 70.15
		10	$ 66.02
		25	$ 61.49
		50	$ 59.06
		100	$ 57.56
Sager	N/A	1	$ 74.82
		5	$ 70.15
		10	$ 66.02
		25	$ 61.49
		50	$ 59.06
		100	$ 57.56
		250	$ 54.76

Description

General part information

REC30-483.4 Series

Isolated DC/DC Converters - Through Hole 30W 9-36Vin 5.1Vout 6000mA

Documents

Technical documentation and resources

Datasheet

Document
